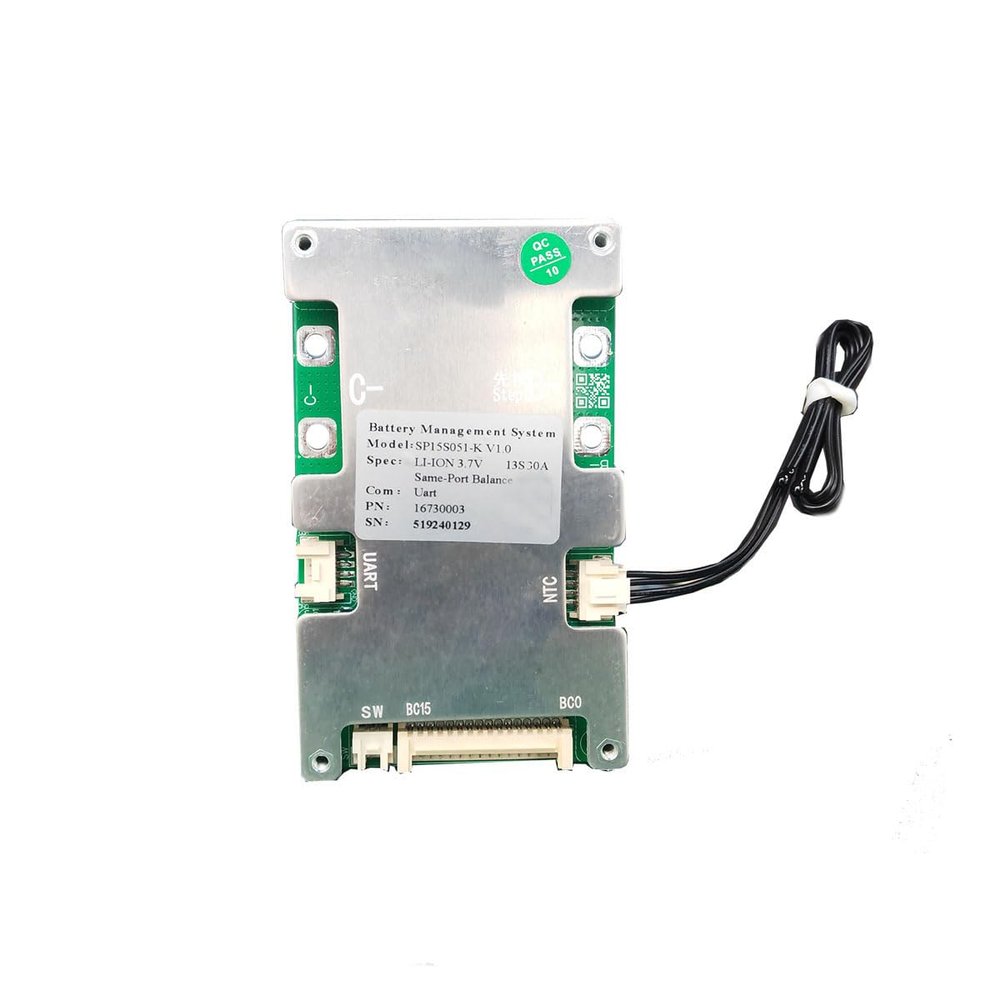

15S Li ion 60V Battery BMS with 30A Constant current Battery protection Board with Balance

Description

• his BMS will be applied on15S Lithium ion Battery pack , client can apply it to 12S ~15S li ion or Lifepo4 Battery with slightly modification with instructions from us . it was built With reliable Battery management chip and MCU provides excellent long term performance for your Battery system,With Precise SOC calculation with SOC function of automatic learning and monitoring function
• Dimension :108*65*10mm
• Charge and discharge port : with the same charge and discharge port ,Constant current :30A,with Passive Balance function .
• Support Protection parameters edit and change : such as over-charge protection voltage , over-discharge protection cut-off voltage ,over-current protection current,high and low temperature ,switch function activation setting etc
• With free connection wires ,cable connector and BT Module will be included

This is a BMS specially designed for battery packs from 12S to 15S with different wire connection arrangement methods.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach 30A. Application: For 13 series Li ion NCM Battery (15*4.2=63V full voltage Li ion Battery ), this BMS can be adjusted also for 12S 13S 14S 15S li ion or Lifepo4 Battery if client needs to change it afterwards for different application . Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection . Precise SOC calculation with SOC function of automatic learning With passive balance function Support Parameters setting by user with our APP. With SW Port for output controlling switch ( client needs to activate it if needs this function afterwards via APP or PC software ) With High and low tempeature detection .
