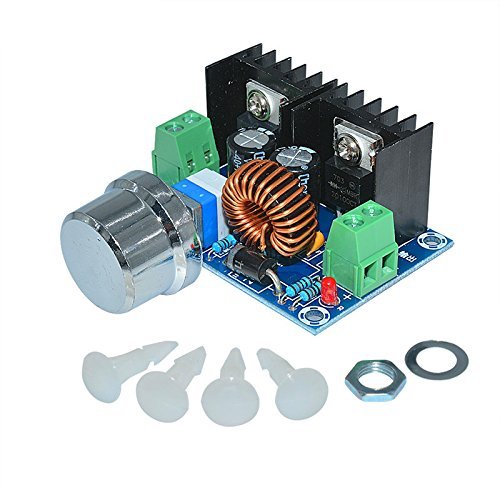

2 Pack DC-DC Buck Converter Voltage Regulator 4V-40V to 1.2-36V 8A Adjustable Step Down Power Module 200W XL4016

Description

• 1. 100% brand new and high quality.
• 2. Continuous adjustable output voltage, maximum output current up to 8A.
• 3. This voltage regulator integrates many protection modules including overcurrent protection, over temperature protection and short circuit protection.
• 4. Long-term working current is recommended within 5A.
• 5. The circuit board is made with high quality electronic components, stable and reliable.

Features:

This product uses the XL4016 switch type voltage regulator chip, with MBR10200 double rectifier, the maximum input up to 1.25-36V, the output 40V continuously adjustable.

Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection

When reach maximum output current 8A, need to add fan. Long term work recommended about 5A.

Panel Mounting:

1. Drill holes in the Panel 7mm

2. Extended potentiometer handle

3. Lock screw sleeve upper knob

Specifications

Product name: DC step-down module Converter

Model Number: XH-M401

Type: Voltage Regulator

Operating Temperature: standard

Condition: New

Material: metal

Supply Voltage: 4-40V To 1.25-36V

is,customized: Yes

Dissipation Power: standard

Application: Computer

match 1: diy

match 2: dc - dc

match 3: dc buck converter

match 4: 1.2v-36v converter

match 5: 100w step down

match 6: 100w step down module

match 7: dc dc step down

Descrizione del prodotto

Voltage regulating mode: PWM modulation

Input voltage: DC4-40V

Output voltage: DC1.25-36V

Max output current: 8A (more than 5A for long time use,need Fan if over 5A)

Max power: 200W

Conversion efficiency: 94%

Switching frequency: 180KHZ

Appearance size: 61*41*27mm

Package Content

2 x DC step down voltage power module
