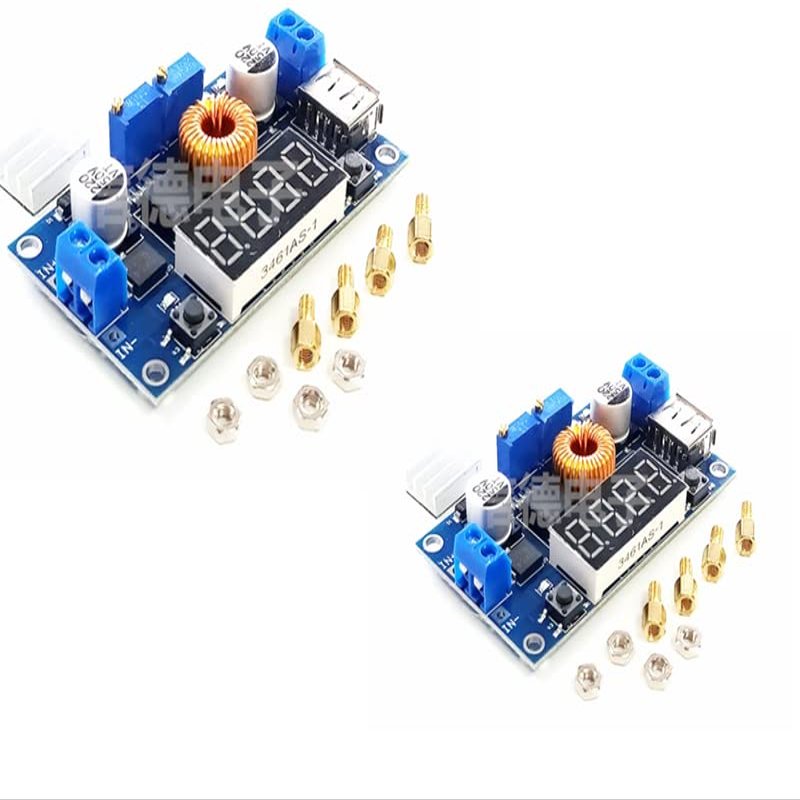

2PC 5A75WXL4015 Step-Down Power Module Output Voltage 1.25-32V

Description

• Input Voltage: 5-36V
• Output Voltage: 1.25 - 32 V continuous adjustment
• Output Current: Adjustable, 5A (Recommended to use within 4.5A)
• Operating frequency: 180KHz
• Short Circuit Protection:Yes

Module Highlights
1. On-board voltage, current, and power meter You can easily use this module without a multimeter. It is more simple and intuitive.
2. On-board USB interface allows you to charge digital products easily. (Note: The USB output voltage is the same as the module output voltage, not fixed 5V output. Please check before charging the USB device)
3. High power, high efficiency, 5A, low ripple;
4.Three main functions:
1) Used as a regular buck module with overcurrent protection.
2) Can be used as a charger for various voltage values of lithium batteries, batteries, nickel-cadmium-NiMH batteries (battery pack), and other occasions such as solar panels, wind turbines;
3) Used as high output LED constant current drive module;
4. It has two modes: constant voltage and constant current, there is an indicator light which indicates which mode the module is currently in.
5. When used as a lithium battery charger, you can set the floating charging voltage and charging current, and there is an indicator light to indicate whether it is charging or fully charged.
6.Current limiting protection function will not burn the module even if the output is short circuit.
Module Parameters
Input Voltage: 5 - 36 V
Output Voltage: 1.25 - 32 V continuous adjustment.
Output Current: Adjustable, 5A (Recommended to use within 4.5A) Output Power: 75W (Recommended to use within 50W If you use a large pressure difference, please reduce the power.)
Operating Temperature: -40 - +85 degrees
Operating frequency: 180KHz
Conversion efficiency: 96%
Short Circuit Protection:Yes
