3 4 Axis Mach3 System Router Controller Box With DM542 Nema23 Stepper Motor Driver 2.2kw VFD And 500W 36V Power Supply

Description

• Motor Drives
• 3 4 Axis Mach3 System Router Controller Box With DM542 Nema23 Stepper Motor Driver 2.2kw VFD And 500W 36V Power Supply
• Item weight: 0.11 pounds
• Output wattage: 500.0 watts
• Included components: Charging Cable
• Voltage: 36.0 volts
• Wattage: 500.0 watts
• Engine type: 4 Stroke
• Frequency: 50.0 hertz
• Material: paper

Motor Drives

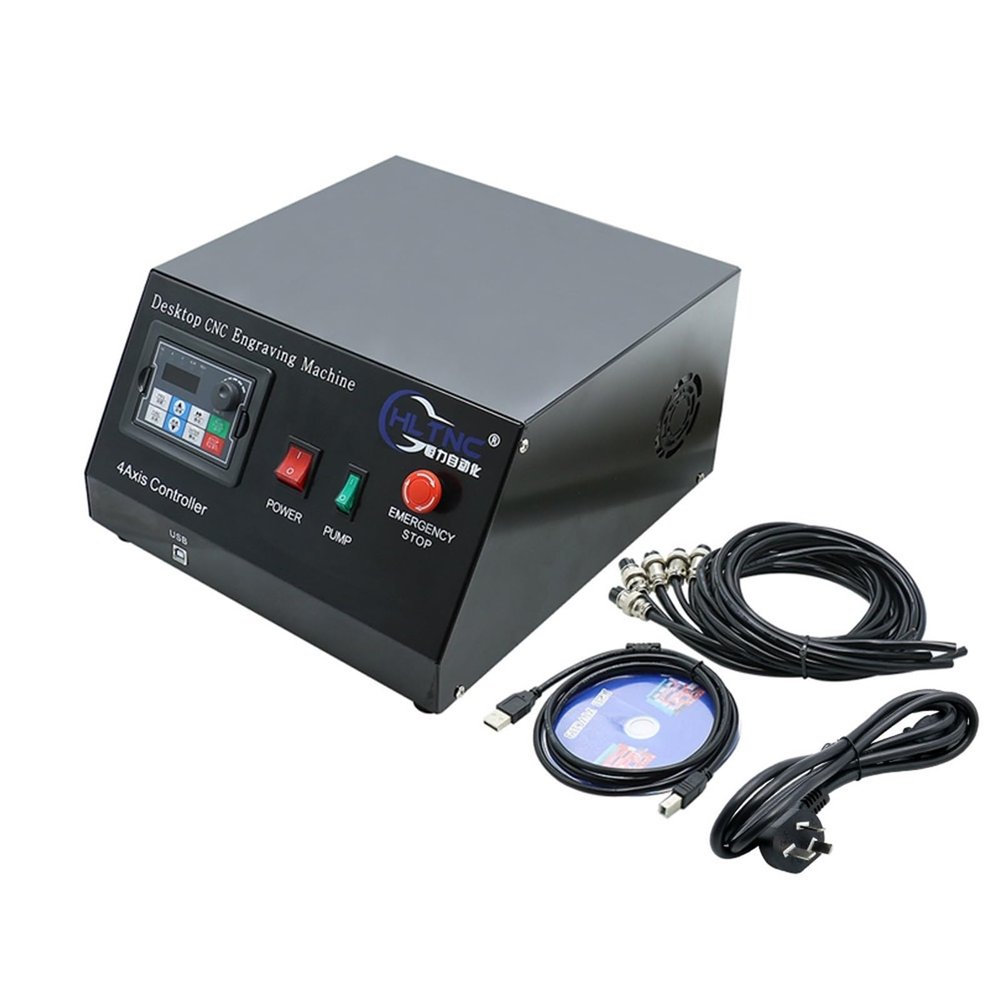

4 Axis Controller Box x1
Motor Cable x 4
Cable x 1
Power Cable x 1
USB cable x 1
CD x 1
If English Manual Needed, Please Contact With Us And Tell Us Your Email Address,
We Would Send It To Your Email.
1. Integrated
2. Aviation Connector (Easy to be installed)
3. 500W PSU & 22KW VFD
VFD Control Panel
Power Switch
Pump Switch (Spare)
Emergency Stop Button
USB Interface
Motor Interface
Spingle Interface
Reserved Interface
(Hand wheel, proximtiy Switch)
Power Interface
Power Supply Fans
Call up the programming function code or
return to the exit programming status
Enter the submenu or data confirmation
Multi function button F8.04 Function selection
The modification bit of data can be moved
in the programming state
+Modify number
-Modify number
The default keyboard starts. Press this key
to enter the operation state. The FWD light is on
Stop button, press this button to reset the fault in
case of inverter fault
REV reverse operation indicator
By default, this knob is used for 0-50Hz speed regulation
FWD forward running indicator
When one of the FWD or REV indicator lights is on, it means
that the inverter is running
Running indicator. The motor can only operate with operating
frequency.Some parameters cannot be modified under
running status
Inverter Paremeter Setting
F0.04=400.0
Max frequency Hz
F0.05=400.0
Max frequency Hz
F4.00=220
Voltage
F4.01=7.0
Current
F4.02=24000
Speed
F4.03=400
Frequency
If your motor is 400hz, three-phase, 220v, 7A,
24000RPM, you can set it as above;
if your input voltage is 110v,
you can change F4.00=110
Operation Example:
Change the ( FUNC ) key function to the reverse start start key
1. Press ( PRG ) to display F0:00
2. Press ( ) ( ) to change F0:00 to F8.04
3. Pr
