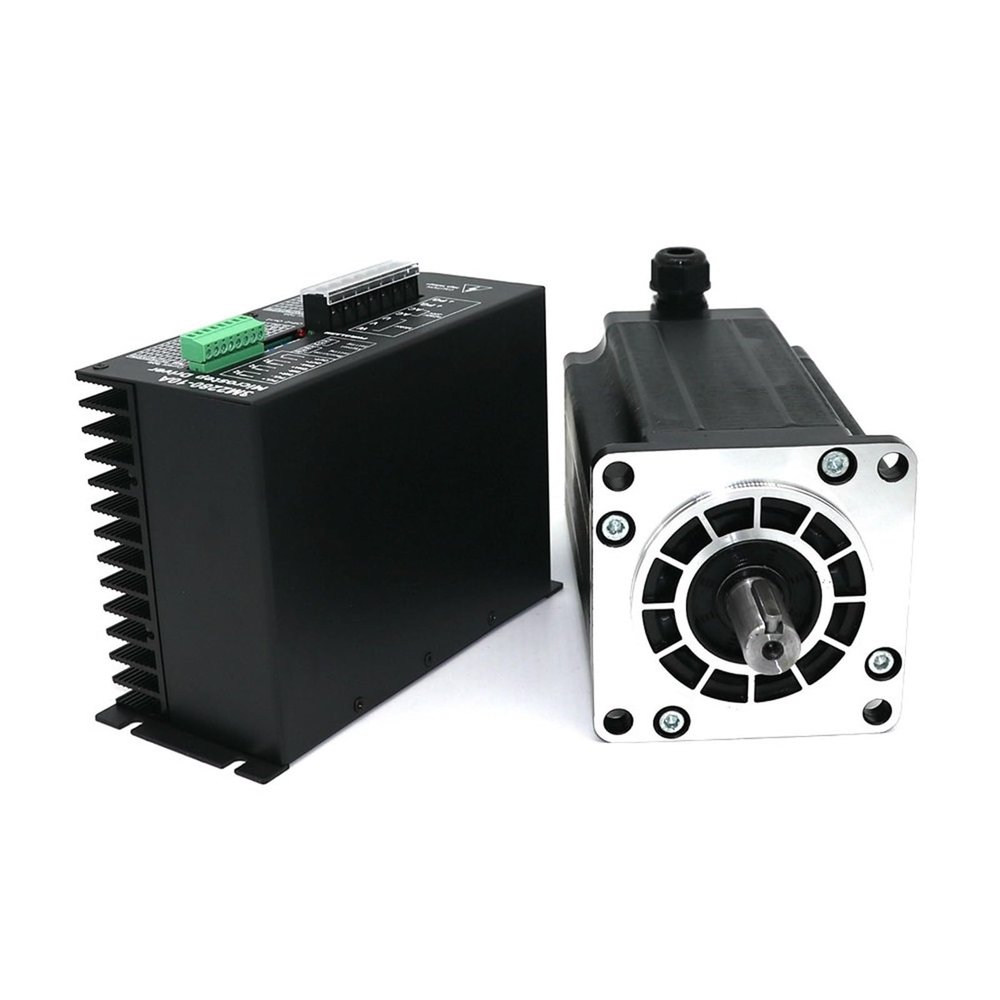

3Phase NEMA52 130mm 50N.m AC Stepper Motor Stepper Motor 130BYGH350D-01 1.2Degree 6.9A+ Drive kits With Driver 3M2280-10A (Size : 24mm shaft)

Description

• Motor Drives
• 3Phase NEMA52 130mm 50N.m AC Stepper Motor Stepper Motor 130BYGH350D-01 1.2Degree 6.9A+ Drive kits With Driver 3M2280-10A

Motor Drives
Package Include:
1pc 130BYGH350D-01 Stepper motor
1pc 3M2280-10A Stepper motor driver
1pc 3meter 4 core line
Stepper motor technical parameters
Model
Step angle
Current(A)
Resistance (Ohm)
Holding (Nm)
Weight(Kg)
L Length(mm)
Match Drive
130BYGH350A
1.2
6.9
1.1
20
14.1
183
3MA2280
130BYGH350B
1.2
6.9
2.8
28
17.2
215
3MA2280
130BYGH350C
1.2
6.9
3.3
35
19.8
247
3MA2280
130BYGH350D
1.2
6.9
4.2
50
26
280
3MA2280
3 Phase Stepper drive technical parameters
1. AC80V-220V power supply, Up to 9.3A phase current output3 Phase Stepper drive technical characteristics
2. Cost-effective, ultra-low noise
3. Using closed-loop current control technology, Accurate sinusoidal current output, the motor running more smoothly
4. Optically isolated differential signal input
5. Pulse response frequency up to 200KHZ
6. With off-line (ENA) control signals
7. Over-voltage, over-current, overheating, phase protection
3M2280-10A
MIN
Typic Value
MAX
Power Supply (VAC)
80
150
220
Output Current (A)
0.7
- 9.3
Control Current (mA)
8 10
20
Response frequency (KHz)
0 200
