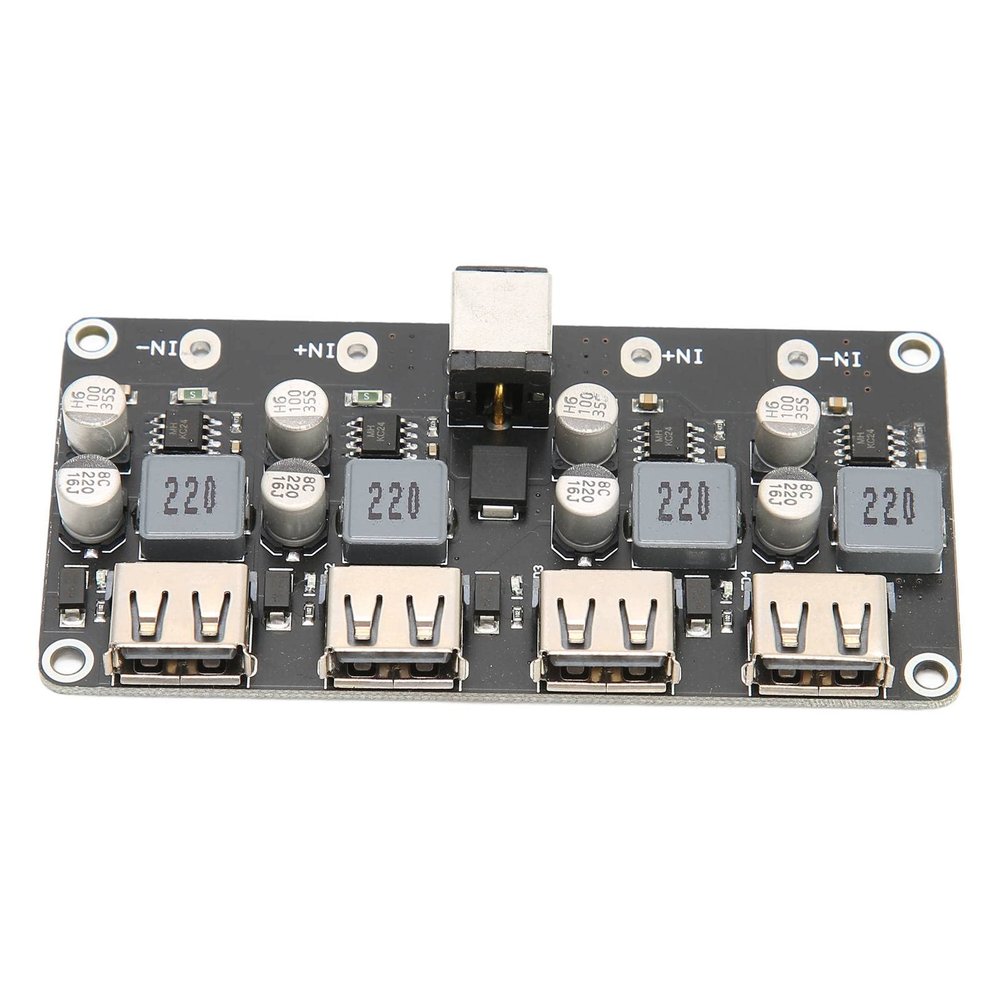

4 Way Fast Module, Power Module Fast Module 12V 24V to QC3.0 Power USB Phone Charging Converter Board

Description

• [EXCELLENT PCB] Adopt FR4 1.6mm thick PCB design, with optimized layout, back heat dissipation, has low full load operating temperature.
• [4 WAY DESIGN] 4 way fast charging module, 12V24V to QC3.0, supports 3.0 fast charging protocol, and can be charged at the same time.
• [ ] Standby current is 0.013A, the module has output voltage compensation function, with multiple and high reliability.
• [USB CHARGING] USB interface design, can mobile phones, supports a variety of output fast charging protocols, with good compatibility.
• [WITH CHIP] Built in synchronous switching converter chip, with 220Khz switching frequency, voltage conversion efficiency up to 97%.

1. [4 WAY DESIGN] 4 way fast charging module, 12V24V to QC3.0, supports 3.0 fast charging protocol, and can be charged at the same time.
2. [EXCELLENT PCB] Adopt FR?4 1.6mm thick PCB design, with optimized layout, back heat dissipation, has low full load operating temperature.
3. [ ] Standby current is 0.013A, the module has output voltage compensation function, with multiple and high reliability.
4. [WITH CHIP] Built in synchronous switching converter chip, with 220Khz switching frequency, voltage conversion efficiency up to 97%.
5. [USB CHARGING] USB interface design, can mobile phones, supports a variety of output fast charging protocols, with good compatibility.

Specification:
Item Type: Fast Charging Module
Built in synchronous switching converter chip
Input Voltage Range: 4.5V-32V ( module, the input voltage must be higher than the output voltage)
Output Voltage Range: 3V-12V, automatically adjusted according to the fast charging protocol
Output Power: 24W maximum (4V at 3.6A, 5V at 3.4A, 9V at 2.5A, 12V at 2A, etc.)
Output voltage wired compensation
Output has CV/CC characteristics (output current is less than the set value, output CV mode; output current is greater than the set value, output CC mode)
Conversion Efficiency: Up to 97%
Function: Yes
Switching Frequency: 220Khz
Output Fast :
1. Support for BC1.2, for iOS, for protocol
2. Support for .0 QC3.0
3. Support for MTK PE1.1/PE2.0
4. Support for Fast charging Protocol
5. Support for fast charging protocol AFC
6. Support for Fast charging Protocol SFCP
Multiple , High Reliability:
1. Output overcurrent, input overvoltage, input undervoltage, output short circuit
2. Over temperature of the whole machine
3. ESD 4KV, withstand voltage
