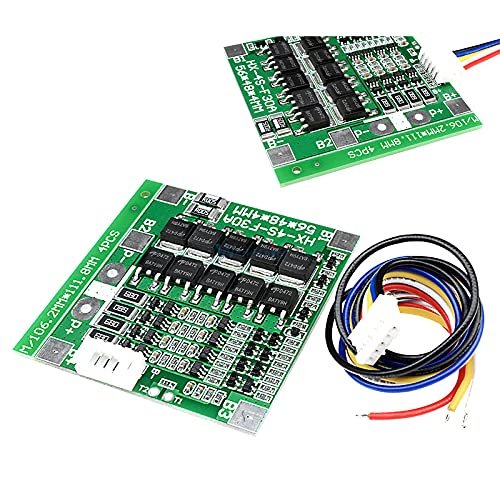

4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board Module Balance Integrated Circuits with Wire 45x56X3mm

Description

• 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board Module Balance Integrated Circuits With Wire 45x56X3mm

Specifications
Name:Protection board
Model:548604
Working current: 30A
Balanced current: 60mA
Over current: 60A
Temperature range: -30 - +80
Over charge detection voltage: 4.28+ 0.05 V
Over charging voltage: 4.095-4.195V
Over discharge voltage: 2.550.08
Over charge detection delay time: 0.1s
Short circuit detection delay time: 100ms
Over current detection delay time: 500 ms
Size:56x45x3mm
Main function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function, balance.
Interface definition:
Charging port of the plate and the discharge port is the same, both positive and B- connecting
battery"-", P- charging port and port on the negative electrode;
B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm;
The battery charging detection interface with DC output in the form of needle. Do the same mouth
when the N- is not wiring.
Package Include:
1x 4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board Balance Integrated Circuits
