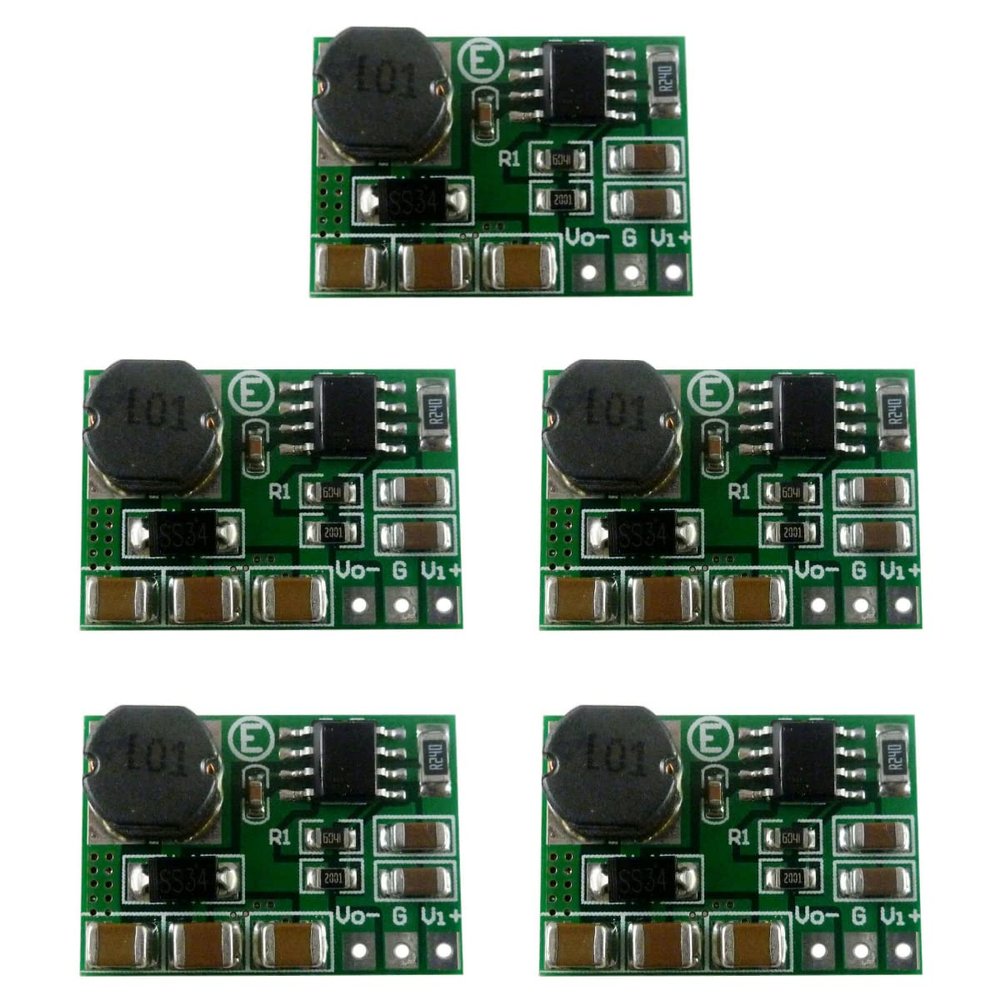

500mA 3V 3.3V 3.7V 5V 6V 9V 12V 15V to -3.3V DC-DC Boost-Buck Inverting Switch Positive to Negative Voltage Module (5)

Description

• Input voltage DC +3~+15V,output DC -3.3V(Deviation is 3%)
• Maximum input current 600mA & Maximum output current : 500mA & Quiescent current: 4-10mA
• DC DC Boost Converter Module working frequency 100kHz.
• Operating temperature range : 0~+70 Degrees Celsius & Storage temperature range : -65~+150 Degrees Celsius
• 2.54mm pin pitch,for MCU Development Board Breadboard friendly & Size : 23 x 16.3 x 6.3mm & Weight :2.7g

Packing list:
3V-15V TO -3.3V Boost-Buck Negative voltage Module

Description:

DC-DC Boost-Buck Inverting switch regulators Module

Input voltage DC +3~+15V,output DC -3.3V(Deviation is 3%)
Maximum input current 600mA
Maximum output current : 500mA
Quiescent current: 4-10mA
DC DC Boost Converter Module working frequency 100kHz.
Operating temperature range : 0~+70 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly
Size : 23 x 16.3 x 6.3mm
Weight :2.7g

Applications

ADC/DAC/ Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
LCD power supply
Instrumentation equipment
MCU Board
Motor Power
Instrumentation multimeter
Router/Ethernet devices

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
