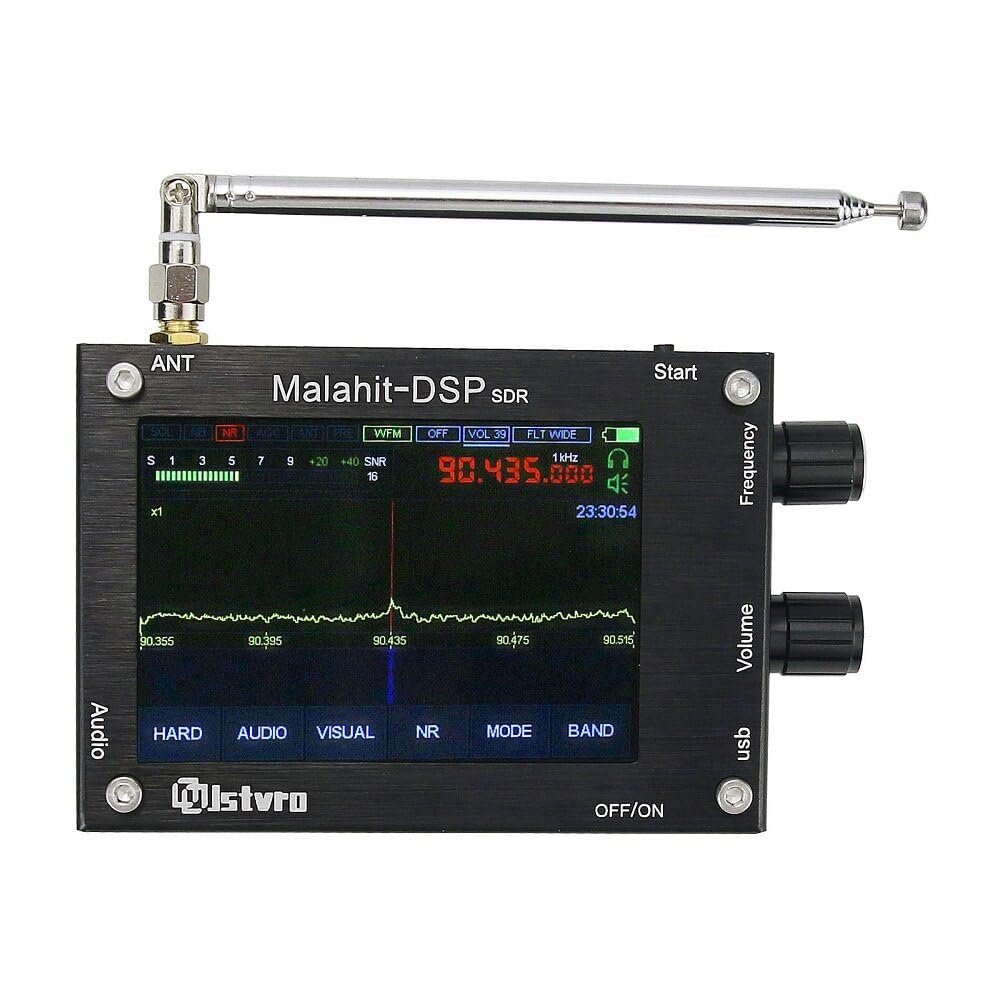

50KHz-2GHz 3.5Inch LED Receiver Malahit SDR DSP Software Radio Registered Edition Radio Bulit-in Speaker

Description

• 1) 3.5" capacitive screen
• 2) 2-panel construction, higher performance
• 3) One audio unit, 2 vibration chambers, speakers with
• 4) With sound chamber, very full bass sound quality
• 5) DSP SDR receiver for Malahit

Features:
3) One audio unit, 2 vibration chambers, speakers with
4) With sound chamber, very full bass sound quality
5) DSP SDR receiver for Malahit
6) Capacitive touch screen
7) Stlink V2 system
8) Default frequency range: 50KHz-2.0GHz
9) Demodulation modes: AM, LBS, NFM, WFM, (CW, MIN SNR); PS: with cooling holes
Specification:
1) The radio principle - functionality is determined by the loading software;
2) Frequency range: 50 KHz to 2.0 GHz (registered version)
3) All types of analogue modulation: AM, LBS, NFM, WFM; (CW, MIN SNR)
4) Powerful features: variable filter width, adaptive noise suppressor, threshold noise suppressor for noise blanket, AGC, equaliser
5) Full-featured chip msi001;
6) Powerful stm32H 743VIT6, clocked at 480 MHz;
7) 3.5 inch display touch screen;
8) Controls: 2; encoder with buttons and touch screen;
9) It is powered by an external TYPE-C connector or by battery (internal battery 3.7V 3800mA) and can be charged via TYPE-C.
10) Consumption: 300mA when listening to headphones;
11) The reception on the built-in telescope or external antenna is to improve the HF reception of the telescope antenna, and an additional board with source follower has been developed. This board will be built into the standard receiver design.
12) PC connection via USB for CAT, IQ and audio transmission.
13)160 kHz span with scalability;
14)Sensitivity: s/w of 0.3V = 10dB at up to 250MHz;
15)Dynamic blocking range of approx. 85dB due to the characteristics of the msi001 chip used.
16) With backlight control;
17)SMA antenna socket with female thread;
18)Main board size: 112 x 70mm (without connectors).
19) Weight: 300g
Package included:
1 x SDR receiver main unit (with aluminium case)
1 x Type-C charging cable
1 x Antenna
