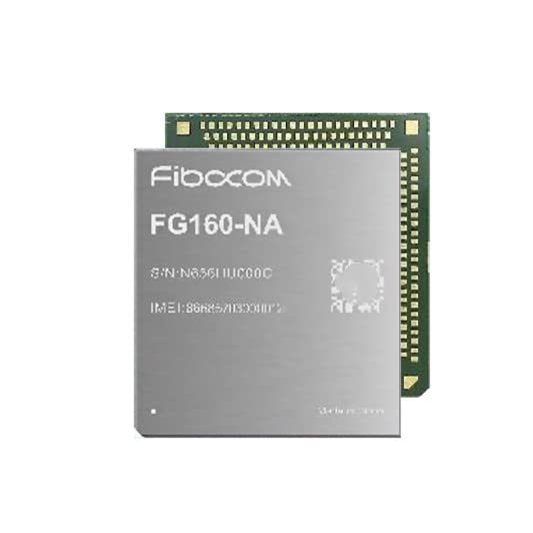

5G Module fibocom FG160 NR sub6 5G/LTE/WCDMA Wireless Network Card Adapter LGA Modem

Description

• 5G sub6 module,Data Transmission NR SA (Mbps) Max. 2470 DL / Max. 900 UL NR NSA (Mbps) Max. 3470 DL / Max. 555 UL LTE (Mbps) Max. 1600 DL / Max. 211 UL WCDMA (Mbps) Max. 42 DL / Max. 5.67 UL
• Dimension (mm) 41x44x2.75;Power Supply:3.135v~4.4v, Typical 3.8V; Operating Temp.: -30C - +75C;Antenna:4+1 (GNSS) Interfaces
• NR: n2/5/12/14/25/30/41/48/66/70/71/77; LTE FDD: B2/4/5/12/13/29/30/66/71 ; LTE TDD: B41/46(LAA)/48
• MIMO: NR DL 4*4MIMO: n2/5/12/14/25/30/41/48/66/70/71/77 UL 2*2MIMO: n41/77; LTE DL 4*4MIMO: B2/4/5/12/13/30/41/48/66/71
• USB3.1/3.0(USB2.0 compatible) PCIe 4.0 UART SPI GPIO I2C SDIO UIM I2S RGMII NA eSIM Optional
• AT Command 3GPP TS 27.007 and 27.005, Proprietary FIBOCOM AT Commands;Network Protocol: PAP/CHAP/IPv4/IPv6/LwM2M/APN/STK-OTA/STK-BIP/DTMF
• Enhanced Features: Voice : CS Voice/ VoLTE/ VoNR SMS: SMS/ SMS over IP(IMS)/ SMS over NAS Audio DFOTA GNSS: GPS/GLONASS/Galileo/BeiDou/QZSS
• Driver: USB: Linux 2.6.38 and later/Windows7&10/Android7.x&8.x&9.x RIL: Android7.x&8.x&9.x NDIS: Windows7&10 ECM: Linux 2.6.38 and later Gobinet: Linux 2.6.38 and later
• MBIM:Windows 10 and later/Linux 3.8 and later QMI WWAN: Linux 3.4 and later
• Cerification Approvals Regulation: FCC*/IC*/RoHS* Operator TMO**/ATT**/VZW** Industry PTCRB*/GCF*/HF*

FG160-NA is a NR Sub 6 module backward compatible with LTE/WCDMA network standards. Powered by the Qualcomm Snapdragon X62 modem chipset, the module delivers maximum downlink rates of 3.5Gbps and uplink rates of 900Mbps under 5G. Supporting NR CA, Fibocoms FG160-NA module significantly optimises 5G user experience with extended coverage, boosted throughput and increased capacity, which is ideally suitable for the FWA market. The FG160 module supports OpenCPU, optimising cost-performance and power consumption. With OpenCPU, FG160 can be developed into an ideal FWA solution, enabling 160MHz bandwidth, 4096 QAM as well as Wi-Fi 6E. FG160-NA adopts LGA form factor measuring 41x44x2.75mm. It is compatible with Fibocom's 5G module FG150. With multiple Internet protocols and industry-standard interfaces for main operating, FG160-NA can be used a variety of cellular terminals such as CPE, STB, IPC and ODU. The module is able to cover mobile network in North America.
