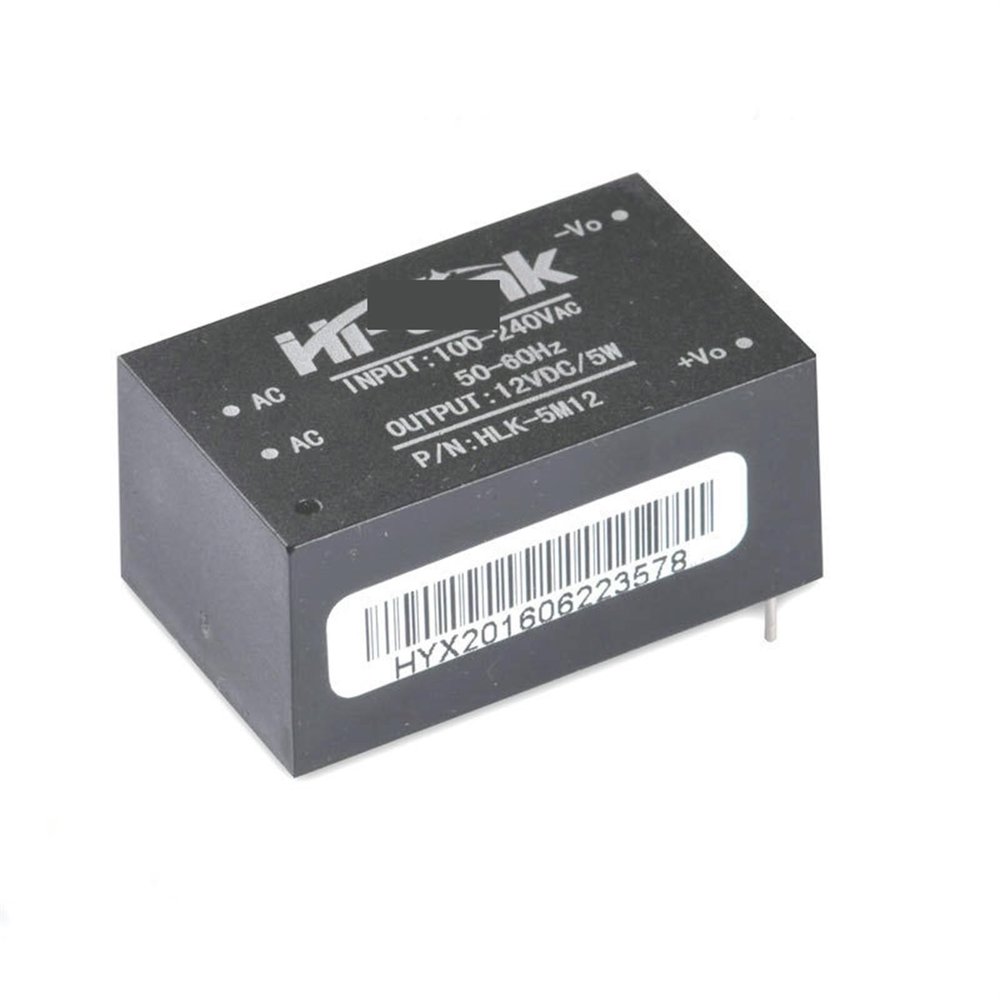

5PCS HLK-5M05 HLK-5M03 HLK-5M12 5W AC-DC 220V to 12V/5V/3.3V Buck Step Down Power Supply Converter Intelligent (Size : HLK-5M12)

Description

• Relays

Relays
Environment Condition
Item Name Technical Criteria Unit
Operation Temperature -20-+60
Store Temperature -40-+80
Relative humidity 5-95 %
Cooling way Cooling by radiation
Atmospheric pressure 80-106 Kpa
Sea level elevation 2000 m
Vibration Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes
3.Electrical Characteristic
1. Input characteristics (test at room temperature 20 ).
Item Name Technical Criteria Unit
Rated input voltage 100-240 VAc
Input voltage range 90-264 VAc
Maximum input current 0.2 A
Input current surge ; 10 A
maximum input voltage 270 VAc
Enter slow start 50 mS
Input Low Voltage Efficiency Vin=110VAc,Output full-load69 %
Input High Voltage Efficiency Vin=220VAc,output full-load70 %
Long-term reliability MTBF100,000 h
Load rated output voltage +3.30.1 VDc
Full rated output voltage +3.30.2 VDc
Short-term maximum output current 1800 mA
The maximum output current for a long time 1500 mA
Voltage Regulation 0.2 %
Load Regulation 0.5 %
Output ripple and noise
(mVp-p) 50
Rated input voltage, full load. Using 20MHz of bandwidth,
The load side 10uF and 0.1uF capacitor to be tested. mV
Switch overshoot amplitude (Rated input voltage and output load plus 10%)5 %VO
