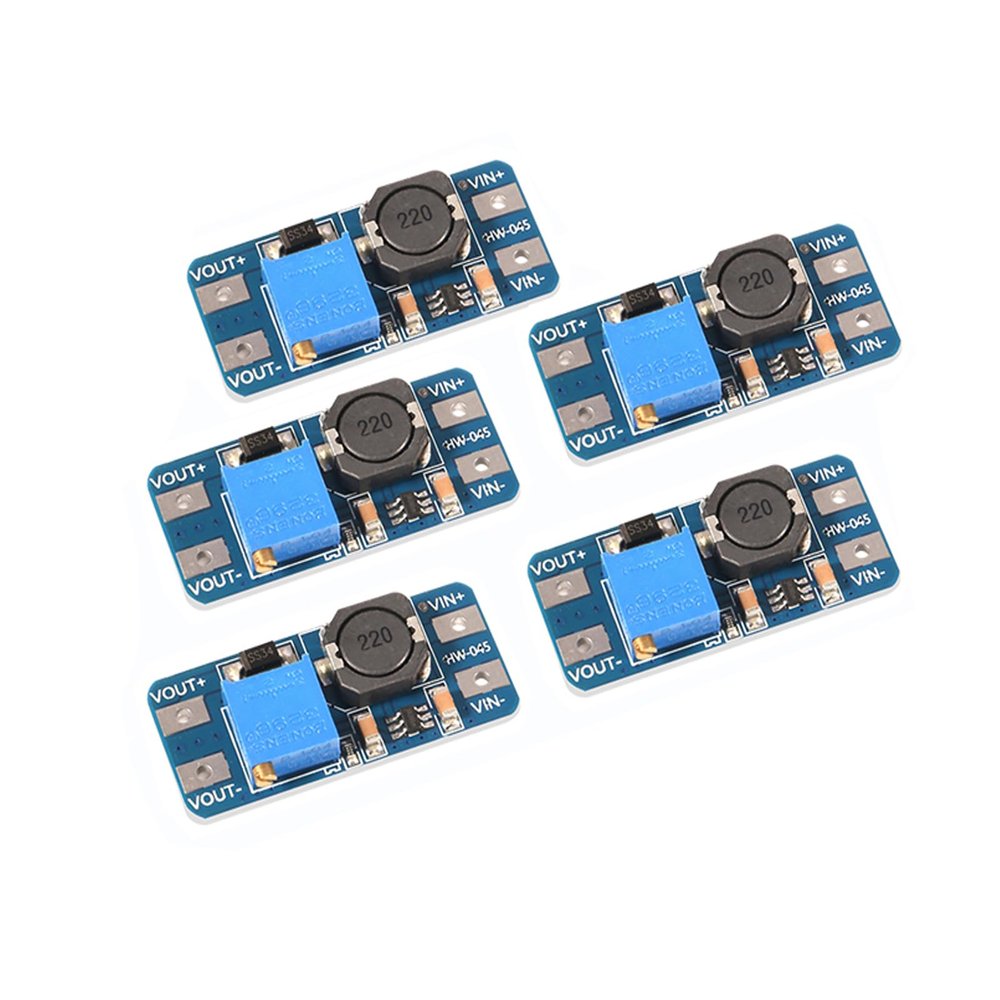

5PCS MT3608 DC-DC Step Up Boost Power Converter 2A Module Adjustable Step Up Voltage Regulator Board 2-24V to 5V-28V Output

Description

• The dc-dc dtep up boost power converter maximum output current: 2A; Board Size: 36 X 17 X 14mm/1.42 X 0.67 X 0.55inch(L*W*H).
• Mini DC-DC step up voltage regulator with DC 2-24V input and 5V-28V output,just connected with USB power adapter then you can get 9V 12V 18V 24V voltge.
• Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 28V output, etc.
• MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.
• Note: Before the first use, the module is not powered and not connected to the load, the blue potentiometer copper head a word mouth adjustment cap, aligned with the direction of the chest, counterclockwise rotation of the potentiometer to the end of the "ta" sound, and then clockwise rotation of the potentiometer more than 30 turns, and finally connected to the power supply, using a multimeter to monitor the module's output voltage to achieve the desired voltage

Feature:
Input voltage: 2 V to 24 V
Output Voltage: DC 5V-28V
Maximum output current: 2A
Efficiency: 93%
(Minimum) (input-output) difference voltage when input is at (2 V and 50% of max-input-V), loading at (50% and 100% rated current)

Method of use:
The module of the IN+ and - after 2~24v, adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage

Matters needing attention:
The input voltage should not exceed the maximum input voltage
The peak current output current no more than TV university
When the module output voltage can not be adjusted, the output voltage is always equal to the input voltage.Please adjust the potentiometer counterclockwise 20 laps or more (Let potentiometer against your chest, counterclockwise turn boost)

Package Included:
5 X MT3608 DC voltage regulator board
