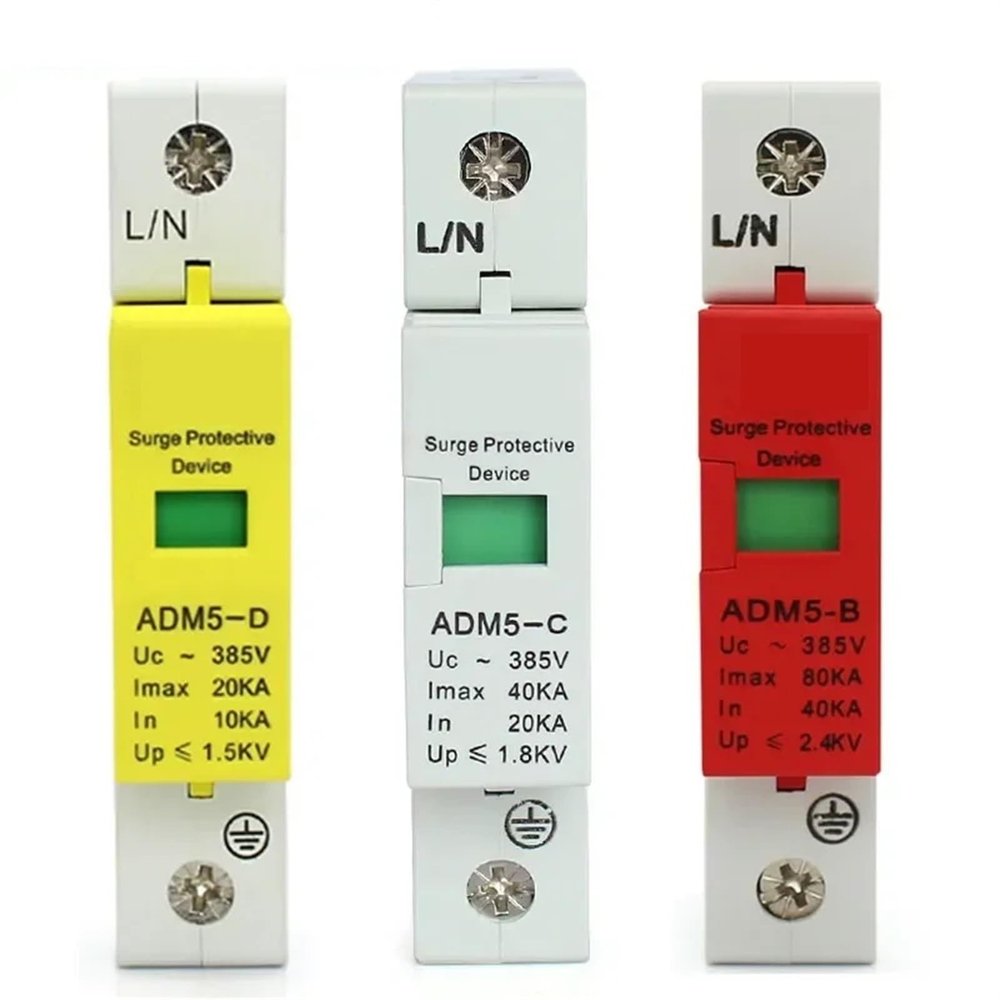

Arrester 1P Surge Protector Device 1P382V 10/80KA House Surge Protective Low Voltage Arrester Device Household Arreste 1Pcs(60KA)

Description

• Surge Protectors

Surge Protectors
1P Power Surge Protective Device SPD Arrester Low Voltage House 1 Pole Surge Voltage Protection AC 10KA 20KA 40KA 60KA 80KA
Color:
10KA/20KA--Yellow;
40KA--White;
60KA/80KA--Red
Application:
1. AC 380V/220V/110V,Widely used in sub-distribution box
2. Green/Red window color showing working status,green=normal ,red=abnormal.
3.Maximum continuous operating voltage Uc(V): 385V AC
4.Voltage protection level up(KV): 2.2KV
5.Nominal discharge current In(8/20s)KA: 30kA
6.Maximum discharge current Imax(8/20s)KA: 10KA 20KA 40KA 60KA 80KA
<;25 ns
8.Test standard: GB18802.1 IEC61643-1
9.Operating environmentC: -40C~85C
10.Relative humudity(25C): 95%
11.Installation: Standard rail 35mm
12.Material of outer covering: Fiber glass reinforced plastic
