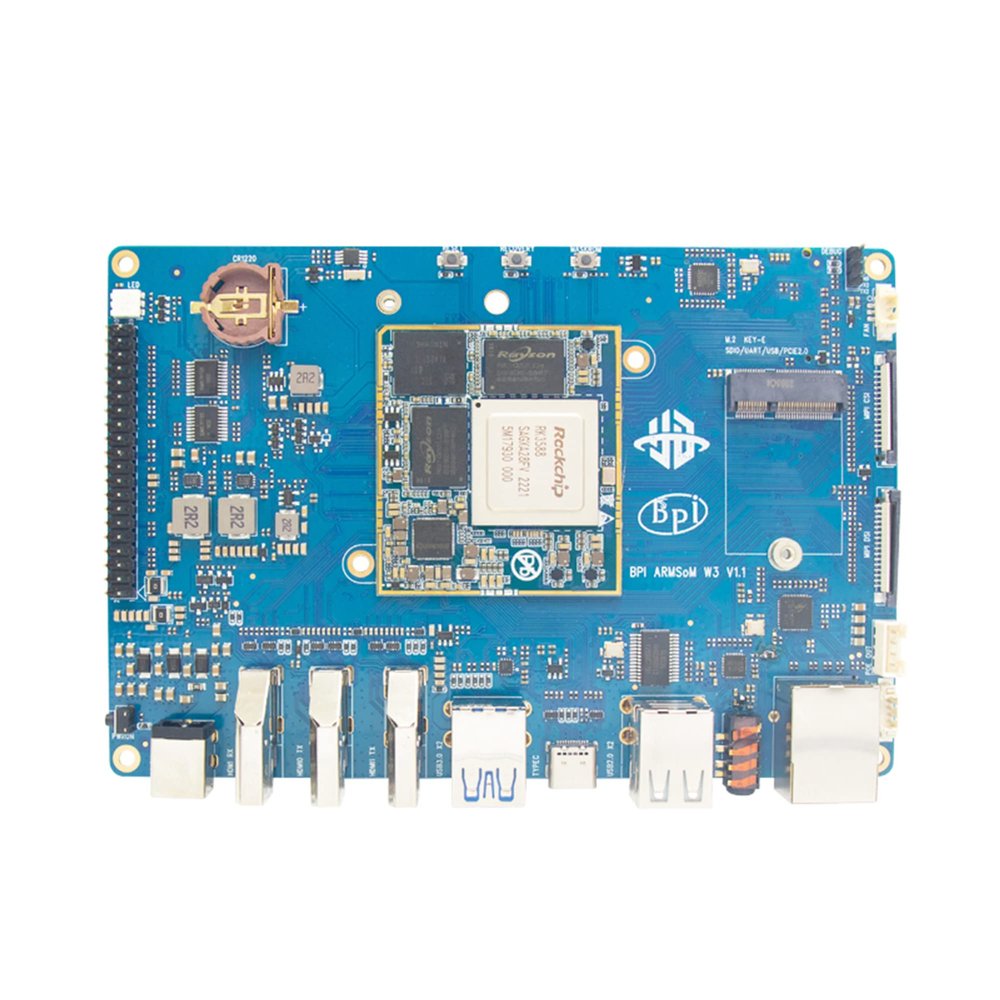

Banana Pi BPI-W3 Rockchip RK3588 Quad Core A76 + Quad Core A55 LPDDR4 8G RAM 32G eMMC 2.5Gbps Ethernet Single Board Computer

Description

• SOC:RockChip RK3588
• CPU:Quad Core A76+ Quad Core A55,use 8nm , 2.4GHz
• GPU:ARM Mali-G610 MP4 GPU,Support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS

Hardware spec

SOC:RockChip RK3588
CPU:Quad Core A76+ Quad Core A55,use 8nm , 2.4GHz
GPU:ARM Mali-G610 MP4 GPU,Support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
NPU:6 TOPS,Support INT4/INT8/INT16 mixed operation,Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Incode&Decode: incode:8K@60fps H.265/VP9/AVS2,8K@30fps H.264 AVC/MVC,4K@60fps AV1,1080P@60fps MPEG-2/-1/VC-1/VP8,decode:8K@30fps H.265/H.264

Ram:4GB/8GB/16GB(up to 32GB)64bit LPDDR4/LPDDR4x/LPDDR5,Defalut LPDDR4 8GB
Flash:16GB/32GB/64GB/128GB/256GB eMMC,support MicroSD card slot,Defaut:32GB
M2 Key M:The interface supports extension SSD
Network:2.5G Network interface(rtl8125)

video output:2x HDMI2.1(just one support 8K@60fps or 4K@120fps,other support 4K@60fps),1 x MIPI-DSI(4K@60fps),1 x DP1.4(8K@30fps)
video input:1x 4Lanes MIPI CSI / 2 x 2lanes MIPI CSI,1 x HDMI RX2.0
Voice:2x HDMI voice output ,1 x DP1.4 voice output,1 x headphone (es8316)
Wireless:M2 E key interface support sdio,pcie,usb BT&wifi(AP6256,Intel AX210)
USB:2x USB3.1,2 x USB2.0,1x USB-C(DP1.4(8K@30fps)/OTG/PD fast charging)

Others:Fan,RTC,LED,debug
Button:Power Button,Reset Button, Recovery Button,Root Button
GPIO:40x GPIO(UART,SPI,I2C,I2S,PWM,ADC, GPIO, 5V power ,3.3V power)
Power:DC 12V/2.5A Aperture 2.5mm,Support USB Type-C PD 2.0 ,9V/2A, 12V/2A, 15V/2A,Support 12V POE
System:Android 12.0,Ubuntu,Debian11,Buildroot,Kirin Linux
Size:148 mm 100.5mm
operating temperature:-10 ~ 70
storage temperature:-20 ~ 70
