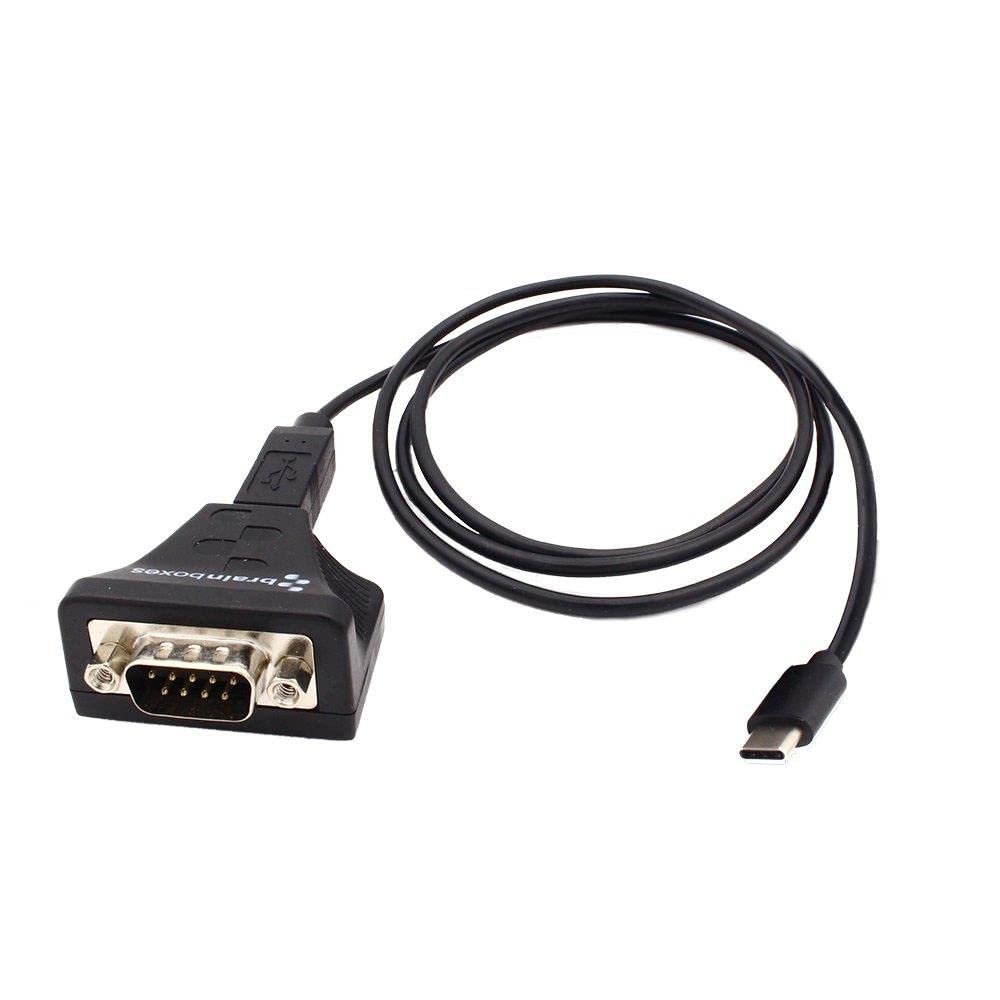

Brainboxes US-720 Usb-c 1 Port Usb 422/485 Serialadap Indust L -40f To +176f Temp Range

Description

• Microsoft Windows 10
• Microsoft Windows 8 32 bit & 64 bit Editions
• Raspberry Pi
• Microsoft Windows 7 32 bit & 64 bit Editions
• Windows Server 2008 32 bit & 64 bit Editions
• Windows Vista 32 bit & 64 bit Editions
• Mac OS X
• Windows XP 32 bit & 64 bit Editions
• Linux

Tough ultra small USB-C to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection, comes with 1m USB-B to USB-C cable . Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values. We provide our own software drivers eliminating many common problems with USB to Serial giving you have a reliable, stable, native com port solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019 Serial Port Serial Port Ports 1 Protocol RS422/485 Connector DB9 Connector - 9 Pin Male Tx FIFO Size 512 Rx FIFO Size 512 Operating Distance RS422/485 Standard (4000 ft : 1200 metres) Cable USB cable Type A to B (0.5 metre ~ 1.5ft) Serial Port Settings Serial Port Settings Max Baud Rate 921,600 Data Bits 7 or 8 Parity Odd, Even, None, Mark or Space Stop Bits 1 or 2 Tx/Rx Modes Full Duplex, Half Duplex Autogating, Hardware Autogating, TxD always/ RTS true enabled, RxD always enabled, RxD RTStrue disabled, CTS forced true General General PCB Layers 4 Operating Temperature Range 0 C to +60 C / 32 F to +140 F Industrial Standard Yes Power Consumption 50mA @ 5V Product Weight 0.024 kg, 0.85 ounces Product Dimensions 41x38x22 mm, 1.6x1.5x0.9 inches Packaged Weight 0.156 kg, 5.50 ounces Packaged Dimensions 160x135x49 mm, 6.3x5.3x1.9 inches GTIN (barcode) 837324004618 Operating System Compatibility Operating System Compatibility Operating Systems Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux Interface Interface USB 2.0 480 Mb/s USB 2.0 data rates.
