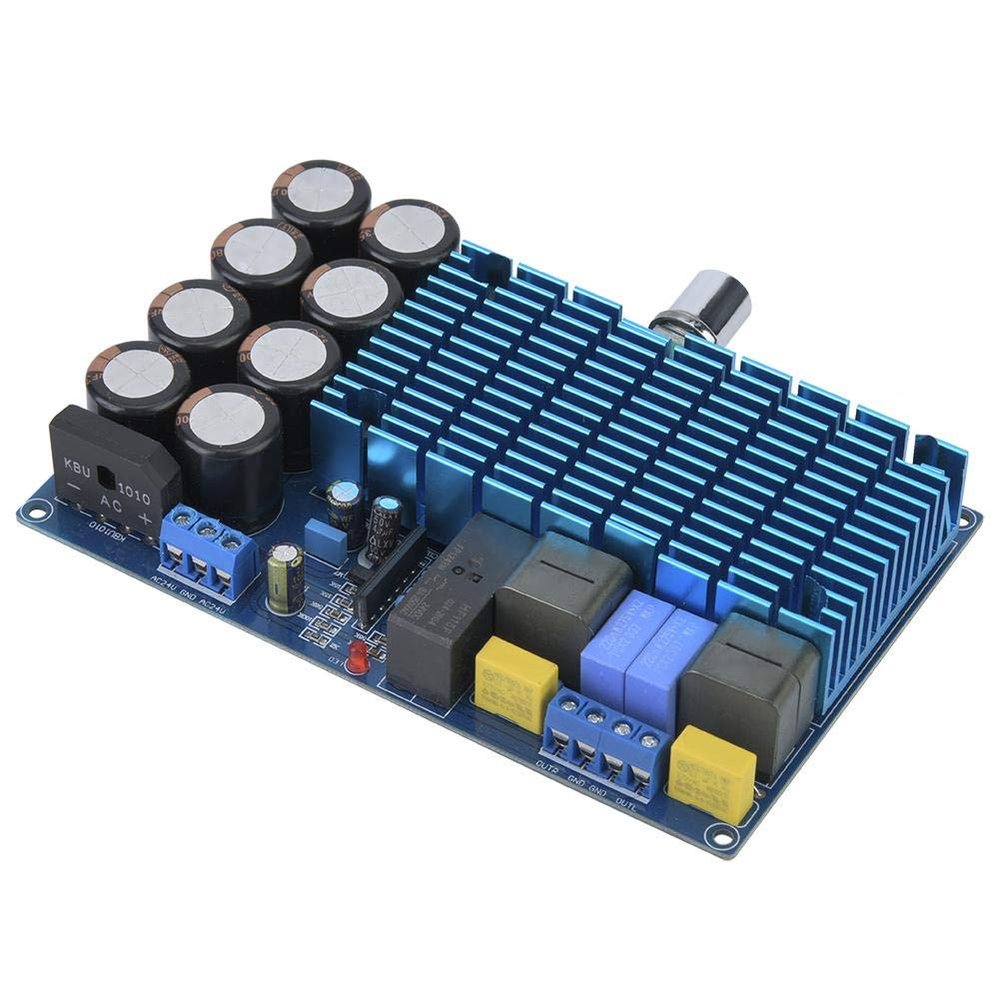

Class-D Hi-Fi Digital Amplifier Board,TDA8954TH Audio Amplifier Stereo Receivers 2 x 210W Dual Channel High Power Stereo Digital Audio Amplifier Board

Description

• TDA8954TH ChipThe digital audio power amplifier board adopts the original TDA8954TH chip, which has excellent performance and effectively improves the output power and sound quality. The sound is clear and noise-free, with great performance and lossless sound quality.
• Rectifier Flat BridgeThe power amplifier board adopts 10A and above rectifier flat bridge to ensure continuous and strong power support. The output adopts red ring high current inductor to ensure clear and powerful sound. The main filter electrolytic capacitor adopts 8*1800UF/35V capacity.
• Five-ring Metal ResistorClass-D Hi-Fi digital amplifier board resistor adopts five-ring metal resistor, and the main circuit adopts five-ring metal film resistor with an accuracy of 1%, which ensures a good signal-to-noise ratio of the power amplifier board. When the power amplifier board is bridged with BTL, use 8ohm to output 420W.
• PCB BoardThe digital audio power amplifier board adopts high-quality PCB board, double-sided 1.6mm thick, 2.0oz copper thickness, tin spraying process, to ensure good flow performance, durable and long service life. High safety factor, strict quality control and quality assurance, you can use it with confidence.
• Best ServiceWe believe our audio amplifier boards are 100% qualified. If you have any questions, please feel free to contact us. We will provide you with the best service.

Features: 1. Original TDA8954TH chip. 2. The main filter electrolytic capacitor uses a capacity of 8*1800UF/35V. 3. Use 10A and above rectifying flat bridges to ensure a steady stream of powerful power support. 4. The resistor uses a five-ring metal resistor, and the main loop adopts a five-ring metal film resistor with an accuracy of 1%, which ensures a good signal-to-noise ratio of the amplifier board. 5. First-class PCB quality: The PCB adopts 1.6mm thick double-sided plate, 2.0oz copper thickness, and spray tin process to ensure good current passing performance. 6. The output uses a red ring high-current inductor to ensure that the sound is crisp and powerful. 7. When using BTL bridging, can output 420W when use 8ohm speaker Specification: Chip: TDA8954TH Working Method: Class D Supply Voltage: AC 18-28V Recommended Supply Voltage: AC24V-0-AC24V Rated Output Power: 2*210W Static Current: 65mA Working Efficiency: 90% Frequency Response: 20Hz-20KHz PCB Size: 142*91*28mm / 5.6*3.6*1.1in Package List: 1 * Amplifier Board 1 * Cable
