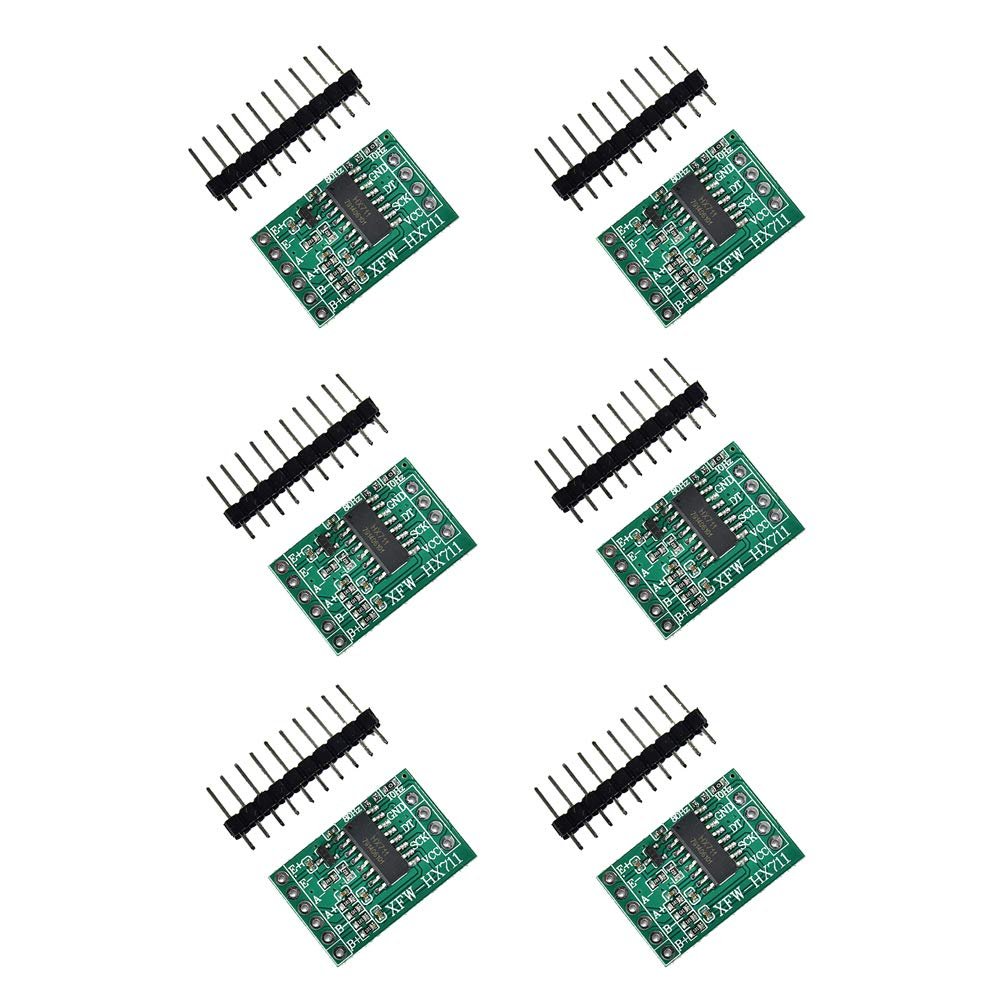

Comimark 6Pcs HX711 Weighing Sensor Dual-Channel 24 Bit Precision A/D Module Pressure Sensor

Description

• Dual-Channel 24 Bit Precision A/D Module
• Two selectable differential input channels
• Two selectable differential input channels
• Package Included: 6 x Module
• Package Included: 6 x Module

Features:
Two selectable differential input channels;
On-chip active low noise PGA with selectable gain of 32, 64 and 128;
On-chip power supply regulator for load-cell and ADC analog power supply;
On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset;
Simple digital control and serial interface: pin-driven controls, no programming needed;
Selectable 10SPS or 80SPS output data rate;
Simultaneous 50 and 60Hz supply rejection;
Current consumption including on-chip analog power supply regulator: normal operation <1.5mA, power down <1uA Operation supply voltage range: 2.6 ~ 5.5V Operation temperature range: -40 ~ +85;
This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module
Package Content:
6 x HX711
