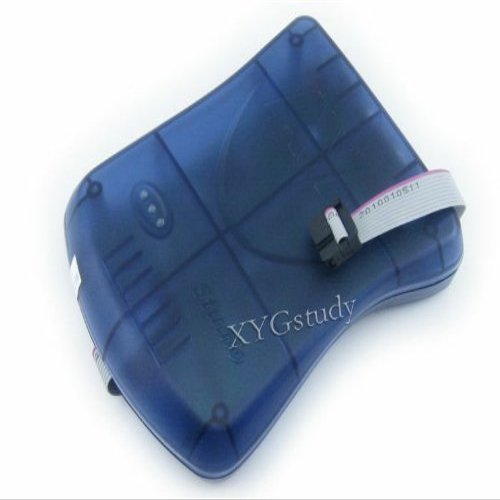

Compatible Atmel JTAGICE mkII JTAG ICE mk2 ATJTAGICE2 MCU AT AVR AVR32 XMEGA Debugger Emulator Programmer On-Chip Debug Studio 4/5/6 JTAG PDI debugWIRE Interface @XYGStudy

Description

• Category: AVR Programmer & Debugger
• Compatible with: JTAGICE mkII from ATMEL
• Supports: On-Chip Debugging and programming
• Supports: all AVR and AVR32 MCUs with On-Chip Debug capability, including XMEGA devices
• Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)

Debugger & Programmer, compatible with JTAGICE mkII from ATMEL
Supports On-Chip Debugging and programming
Supports all AVR and AVR32 MCUs with On-Chip Debug capability, including XMEGA devices
Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)

Features:
Supports debugging of all AVR and AVR32 devices with OCD
Supports programming of all AVR and AVR32 devices with OCD
On-Chip Debugging: Run, Single step, Breakpoints, etc.
Supports Assembler and HLL Source Level Debugging
Programming Interface to flash, eeprom, fuses and lockbits (not debugWIRE)
USB 1.1 and RS232 Interface to PC for Programming and Control
JTAG, PDI, debugWIRE Interface to target board
Regulated Power Supply for 9-15V DC Power
Can be powered from the USB bus
Target operating voltage range of 2.1V to 5.5V

Based on JTAGICE mkII from ATMEL
- Fully compatible with JTAGICE mkII, easy to use, stable and reliable

Based on JTAGICE mkII firmware
- Identified as JTAGICE mkII in AVRStudio, high speed debugging and programming

Upgradable firmware
- Firmware is upgradable to Support Future Devices
- Automatic Upgrade

Package Contains:
USB AVR JTAGICE XPII*1
USB Cable*1
RS-232 serial cable*1
Spare 10-pin cable*1
10-pin (JTAG) to 6-pin (SPI) probe adapter cable*1
10-pin (JTAG) to 10-pin (SPI) probe adapter cable*1
10-wire multicolour custom connector cable*1

Note: 9-15V power supply adapter is NOT included.
