CRUX Interfacing Solutions DKVW-52B | Radio Replacement with Steering Wheel Control Retention and Dash Kit for Select VW Vehicles

Description

• Retains factory features in select Volkswagen vehicles while functioning with an aftermarket radio. Retains factory steering wheel control functions. Retains factory backup camera.
• The interface also provides the reverse gear, illumination, and speed sense outputs youll need to install a navigation receiver
• EIA color coded wiring for easy installation. Includes Single Din/Iso with pocket or Double Din Dash kit
• Notes: 1). Driver information display will show the last information that was shown prior to removing the factory radio. 2). The interface does not retain the factory Bluetooth or Sirius Satellite Radio. 3). Not compatible with amplified systems.

The CRUX DKVW-52B is a premium interface for select Volkswagen CAN BUS Vehicles which includes both a Single Din/Iso with pocket dash kit or a Double Din Dash Kit. The DKVW-52B interface ensures that you can keep the steering wheel audio controls and the factory backup camera (if present) in your Volkswagen vehicle when you replace the factory radio. Once you connect this interface to the wires on your new stereo's wiring harness, you've covered the power, ground, and factory speaker connections for your new stereo. The DKVW-52 interface also offers the reverse, illumination, and Vehicle Speed Sensor (V.S.S.) outputs that you'll need if you're installing a navigation receiver. The Crux interface is designed to work with the factory Volkswagen CAN-bus systems.
VEHICLE APPLICATIONS:
VOLKSWAGEN
2016 2018 Beetle
2016 2018 Jetta/ GLI
2016 2018 Passat
2016 2017 Tiguan

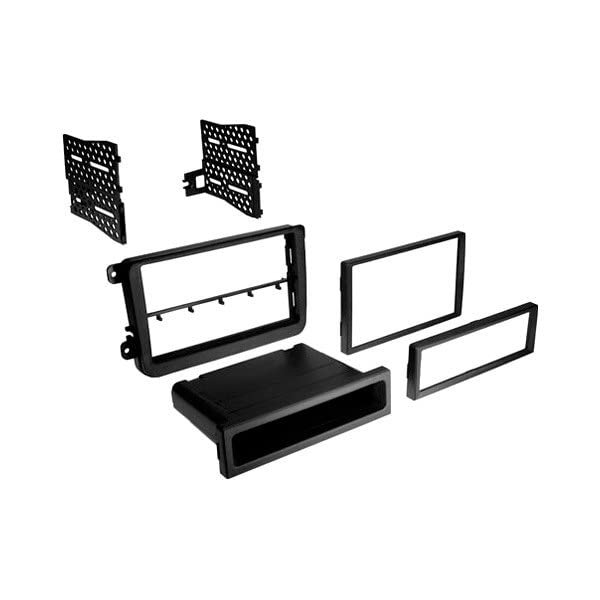

DASH KIT ASSEMBLY DIAGRAM
DOUBLE DIN INSTALLATION
1. Remove the left and right pocket support tabs.
2.Attach the left and right (DDMB) Double din mounting bracket to the mounting frame.
3. Remove the center pocket bracket on the mounting frame.
4. Insert the (DDTR) double din trim ring into the mounting frame.
5. Insert the aftermarket radio and adjust to desired fit and tighten screws
SINGLE DIN INSTALLATION
1. Attach the left and right (DDMB) Double din mounting bracket to the mounting frame.
2. Insert pocket into lower section of the mounting frame.
3. Screw the left and right (DDMB) Double din mounting bracket to the rear of the pocket with provided screws.
4. Insert radio sleeve into upper scetion of mounting frame.
5. Insert the aftermarket radio and adjust to desired fit.
