CS-FPD-TX2-nCAM-IMX327 FPD-Link3 2MP Star Light ISP Camera Module for Jetson TX2 (3 cam YT1.0-4)

Description

• Excellent low illumination and WDR performance1/2.8 inch 2 Mega sensor IMX3271080p@30fps mode
• Excellent ISP built-in;Uncompressed UYVY format, YUV422-8bit
• Open source driver and demo; Detailed documentation;Support Raspberry Pi Zero & W,Pi 4,3 b+,Pi 3, Pi CM. Jetson Nano, Xavier NX.
• A variety of lens optionswiki.veye.cc/index.php/Lens_select
• Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc... Pls refer to veye.cc for more info

Lens chosen
If you want YT1.0-4I, YT1.0-6I, YT2.4-4I ,YT2.0-3.5I or YT1.8-2.8I please order YT1.0-4 and leave a message. The price is the same.

Compoent list

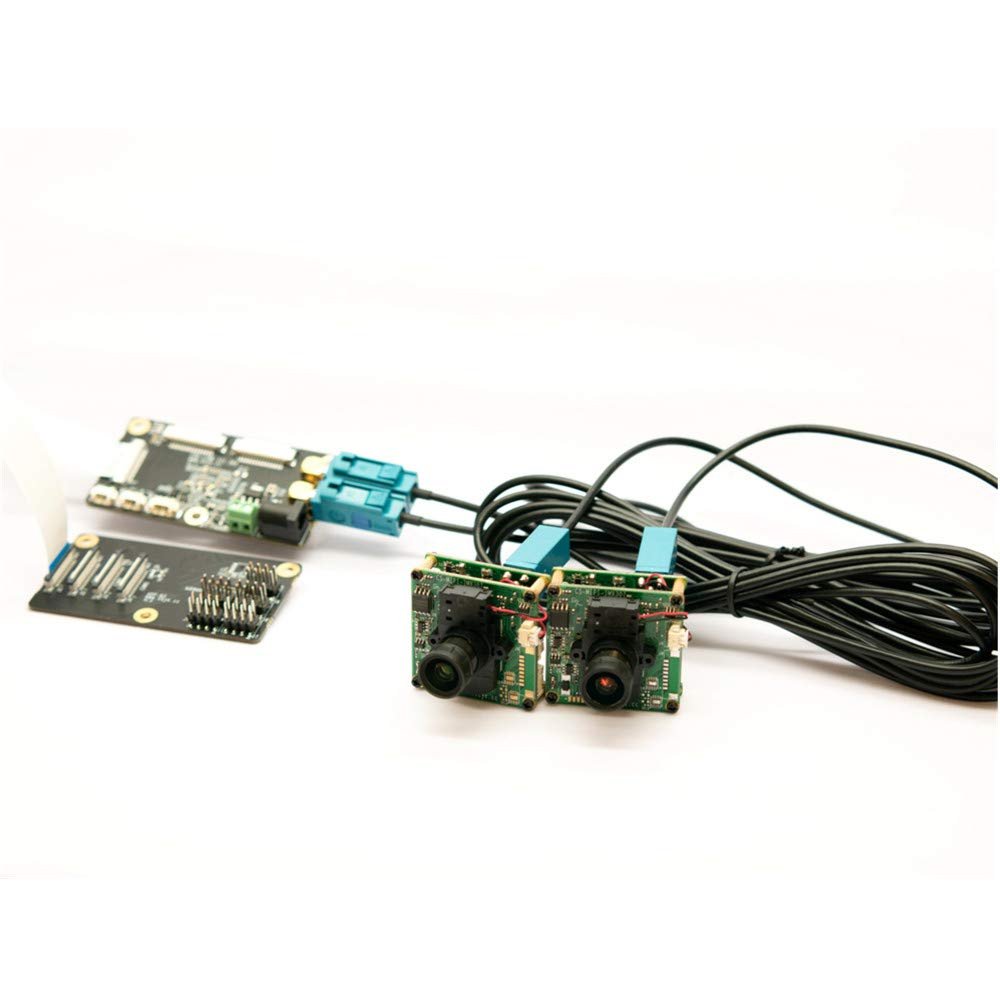

one set of CS-FPD-TX2-nCAM-IMX327(n=[1-6]camera) include
n X VEYE-MIPI-327
n X FPD-LINK3-TX
n/2 X FPD-LINK3-2RX
n X RG174 Cable (5m)
1 X ADP-N2
n X lens

Features
CS-FPD-TX2-nCAM-IMX327 is a camera module with excellent low illumination and wide dynamic performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc...
+ 1/2.8 inch 2 Mega sensor IMX327
+ Output: FPD-Link3
+ Uncompressed UYVY format, YUV422-8bit
+ Standard lens mount
+ IR-CUT circuit
+ Framerate Continuously Adjustable
+ Support Multi-camera Module Video Stream Synchronization
+ BLC, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable
+ Support Jetson TX2
+ Open source drivers and applications for all platform supported
+ Support firmware upgrade by USB disk
+ Open source drivers and applications for all platform supported
+ Lens name: YT[F NO.]-[Focal length];YT1.0-4I mean F:1.0,4mm lens.

FAQ
Q:What should we do when we encounter technical problems?
A:You can submit your questions directly to our forum, and our engineers will reply to you as soon as possible: forum.veye.cc
Q:Where can I find ways to use the camera module?
A:For software usage or product details, please refer to wiki.veye.cc
