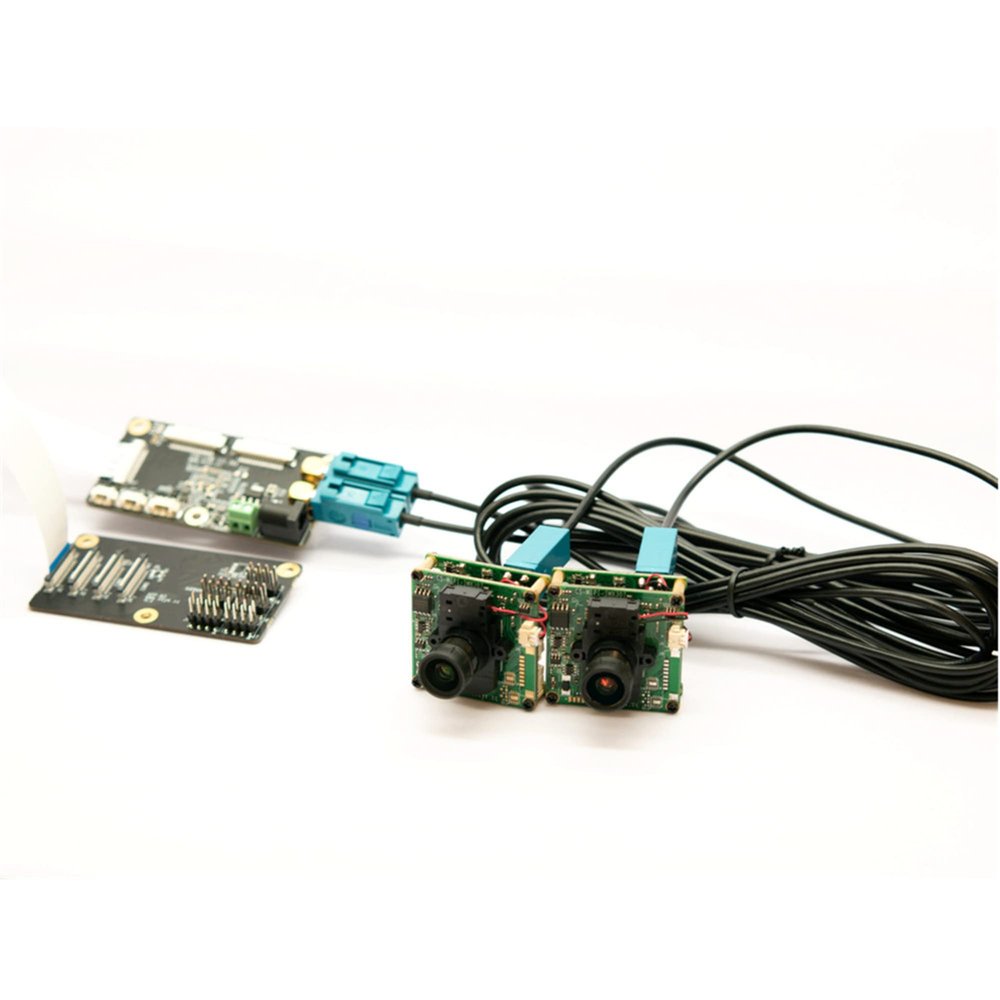

CS-FPD-XAVIER-nCAM-IMX307 FPD-Link3 2MP Star Light ISP Camera Module for Jetson Xavier (2-cam YT1.0-4I Lens)

Description

• Excellent low illumination performance, 1/2.8 inch 2 Mega sensor IMX307,1920*1080@max30fps,1280*720p@max60fps(cropping mode),640*480@max130fps(cropping mode)
• Excellent ISP built-in;Uncompressed UYVY format, YUV422-8bit
• Support Raspberry Pi Zero & W,Pi 4,3 b+,Pi 3, Pi CM. Jetson Nano, Xavier NX

Product introduction

CS-FPD-XAVIER-nCAM-IMX307 is a camera module with excellent low illumination and wide dynamic performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc..

-1/2.8 inch 2 Mega STARVIS sensor IMX307
-Output: FPD-Link3
-Uncompressed UYVY format, YUV422-8bit
-Standard lens mount
-IR-CUT circuit
-Framerate Continuously Adjustable
-Support Multi-camera Module Video Stream Synchronization
-BLC, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable
-Support Raspberry Pi, JETSON NANO,Xavier NX
-Open source drivers and applications for all platform supported
-Support firmware upgrade by USB disk
