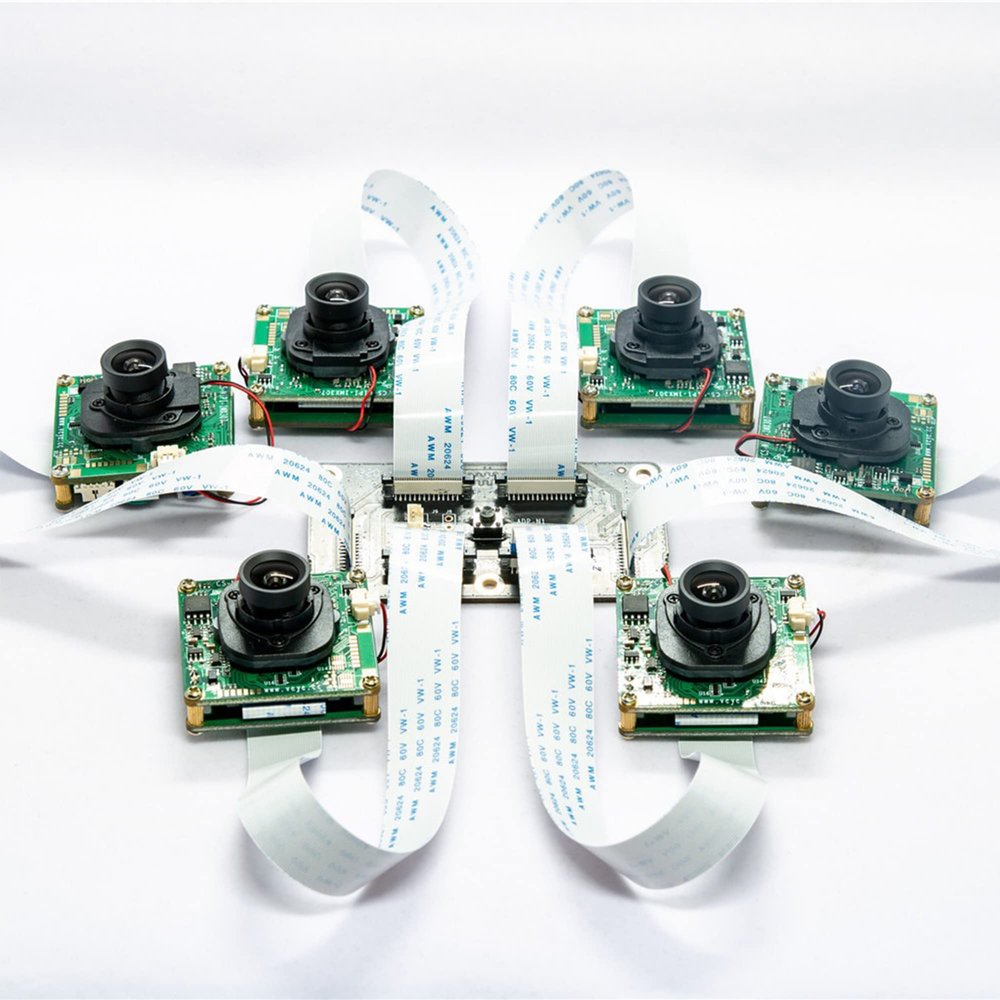

CS-TX2-XAVIER-nCAM-IMX385 for Jetson TX2 Devkit,AGX-Xavier and AGX-Orin, IMX385 MIPI CSI-2 2MP Star Light ISP Camera Module (3-cam YT1.0-5.1)

Description

• 1/2 inch 2 Mega sensor IMX385LQR-C
• Uncompressed UYVY format, YUV422-8bit
• BLC, DOL-WDR, 2D/3D noise reduction, Brightness, Contrast, Sharpness, Saturation adjustable
• Brightness, Contrast, Sharpness, Saturation adjustable
• Support 5V - 3.3V access at the same time, automatic switch 5V power supply
• WIKI: http://wiki.veye.cc/index.php/VEYE-MIPI-IMX385_Starlight_Camera

Product introduction

VEYE-MIPI-IMX385 is a large Imaging size starlight video streaming module, using a compact design (38*38mm) to facilitate user integration, standard 15pin FPC user interface, easy access to embedded platforms such as raspberry pi.

The function of automatic power switch is added,5V and 3.3V power supply can be automatically switched to 5V power supply, or you can freely choose 5V or 3.3V independent power supply.

-1/2 inch 2 Mega sensor IMX385LQR-C
-MIPI output: CSI-2
-Uncompressed UYVY format, YUV422-8bit
-IR-CUT circuit
-Stream mode and Capture mode
-Framerate control
-BLC, DOL-WDR, 2D/3D noise reduction, Brightness, Contrast, Sharpness, Saturation adjustable
-Brightness, Contrast, Sharpness, Saturation adjustable
-Support 5V - 3.3V access at the same time, automatic switch 5V power supply
-Also support 5V, 3.3V independent power supply
