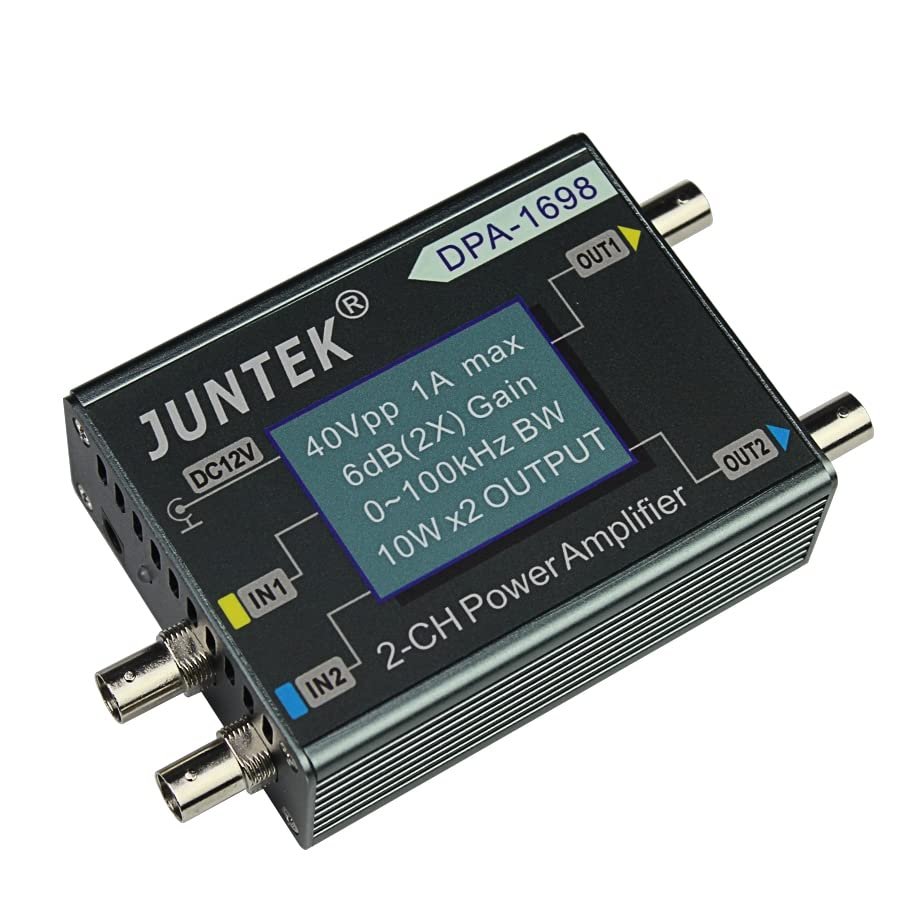

DPA1698 high-Power Dual Channel DDS Signal Source Function Signal Generator Power Amplifier

Description

• Distortion 1%
• Flatness of output signal 1dB
• Input power supply voltage DC12V 10%
• Input current 5A
• Dimension (L * W * H) 139 * 80 * 37.5 (mm)

Parameters
Signal bandwidth 0~100KHz
Input voltage range 0~20VPP
Output voltage range 0~40VpP
Voltage gain 6dB (twice amplification)
Maximum output current 1A
Maximum output power 1 0W * 2
Output impedance <10
Output phase is in phase with input
Distortion 1%
Flatness of output signal 1dB
Input power supply voltage DC12V 10%
Input current 5A
Dimension (L * W * H) 139 * 80 * 37.5 (mm)
Weight 351g
