Electronic Components AD623/AD623ARZ/AD623AN Programmable Gain Digital Potentiometer Amplifier Module - (Option:AD623 Module)

Description

• option:AD623 Module

Product Description:
Home
Arduino
Module
Sensor
Chips
About Us
1.AD623ARZ SOP
2.AD623AN DIP

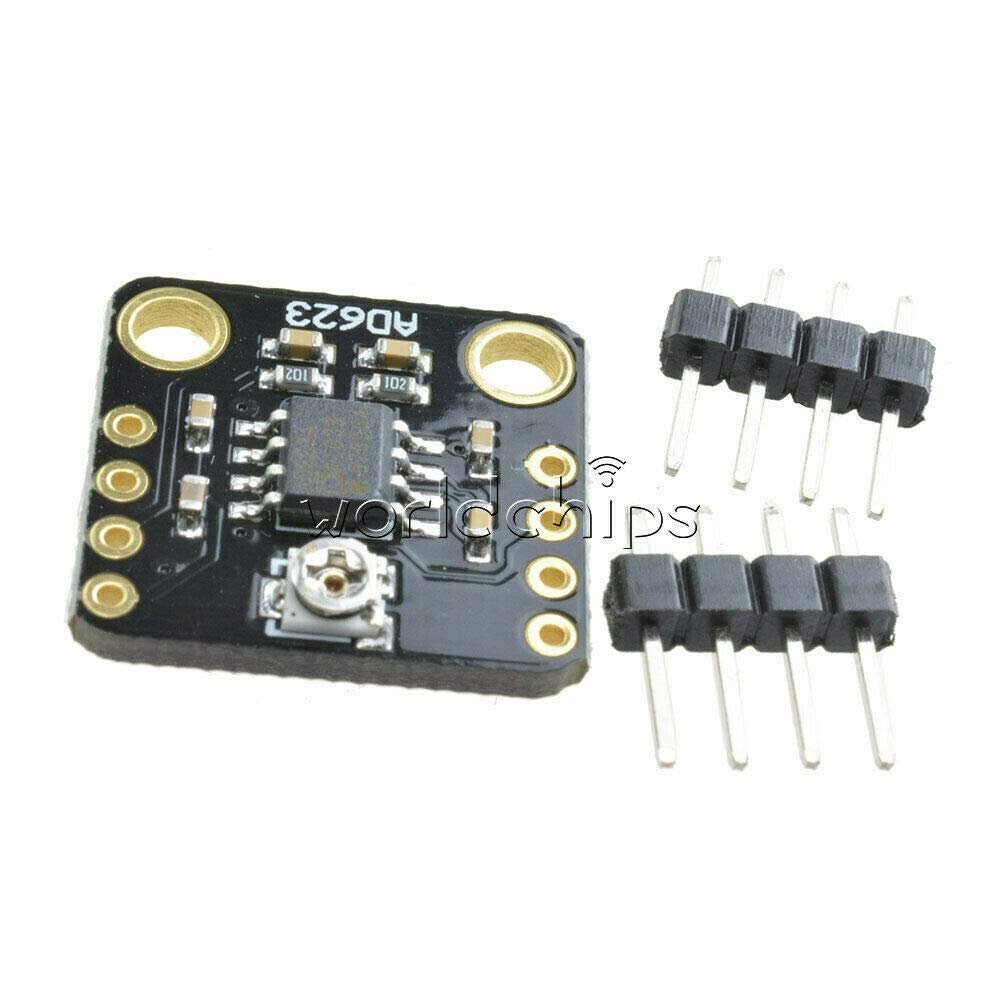

3.AD623 Module
FEATURESEasy to useRail-to-rail output swingInput voltage range extends 150 mV below ground(single supply)Low power, 550 A maximum supply currentGain set with one external resistorGain range: 1 to 1000High accuracy dc performance0.10% gain accuracy (G = 1)0.35% gain accuracy (G > 1)Noise: 35 nV/Hz RTI noise at 1 kHzExcellent dynamic specifications800 kHz bandwidth (G = 1)20 s settling time to 0.01% (G = 10)APPLICATIONSLow power medical instrumentationTransducer interfacesThermocouple amplifiersIndustrial process controlsDifference amplifiersLow power data acquisition
GENERAL DESCRIPTIONThe AD623 is an integrated, single- or dual-supply instrumentationamplifier that delivers rail-to-rail output swing using supplyvoltages from 3 V to 12 V. The AD623 offers superior userflexibility by allowing single gain set resistor programming and byconforming to the 8-lead industry standard pinout configuration.With no external resistor, the AD623 is configured for unitygain (G = 1), and with an external resistor, the AD623 can beprogrammed for gains of up to 1000.The superior accuracy of the AD623 is the result of increasingac common-mode rejection ratio (CMRR) coincident withincreasing gain; line noise harmonics are rejected due toconstant CMRR up to 200 Hz. The AD623 has a wide inputcommon-mode range and amplifies signals with commonmodevoltages as low as 150 mV below ground. The AD623maintains superior performance with dual and single polaritypower supplies.
Package Included: 1PCS
