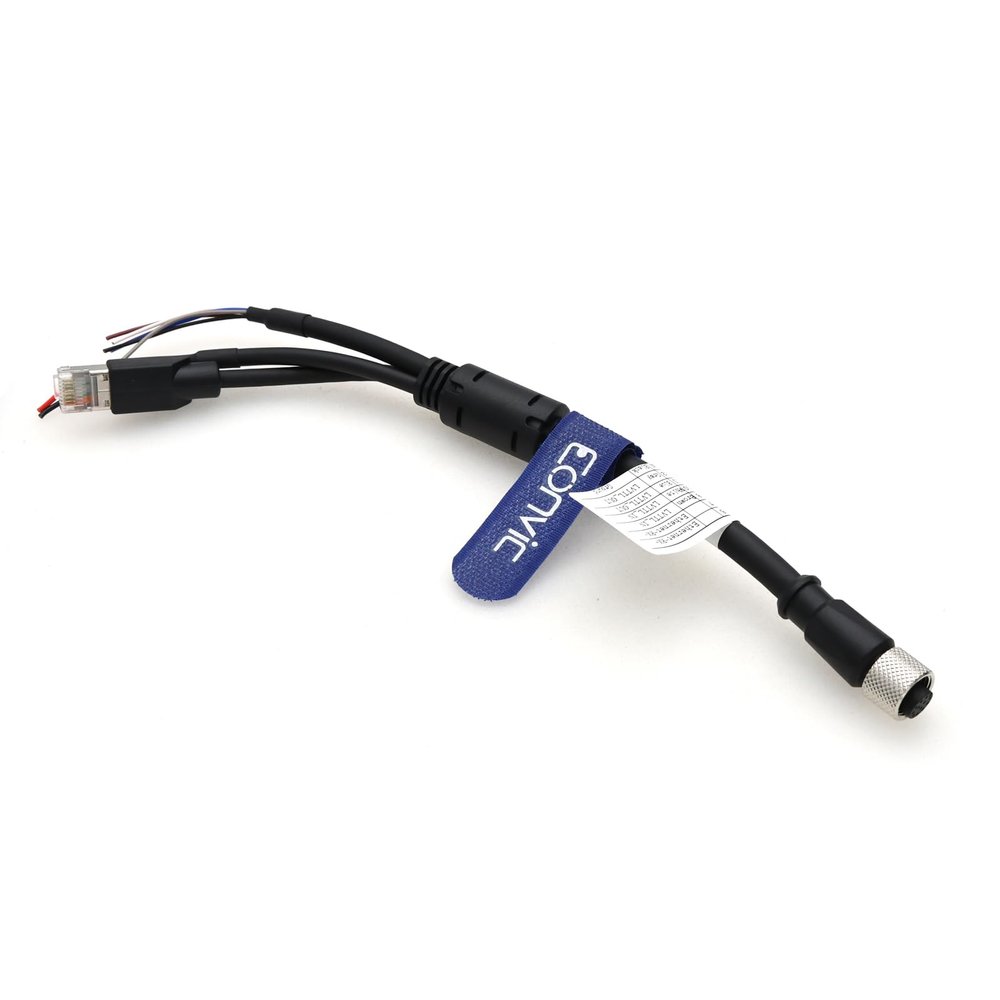

Eonvic Aviation Plug M12 12 Pin Female to 3 Way Power Signal and Data Transfer Cable for DJI Livox LiDAR Mid-360 Mid-70,25cm

Description

• Users can connect to Mid-360 through Livox Aviation Plug 1/3 cable to achieve power connection, control signal transmission and data transmission
• Connector A: M12 12pin female connector. Connector B: 1x open end(power cable)+RJ45(Ethernet cable)+1x open end(function cable). Cable length: 25cm (other length can customize).Because it's so short, it only has this appearance.
• High-quality materials, using gold-plated trident chip, and network cable tight bite, strong and durable PVC environmental protection material. Pure copper core + aluminum foil shielding + braided mesh shielding external signal interference. Stronger transmission, faster and more stable network speed.
• Connection method: 1. Connect the M12 aviation plug female connector to the M12 aviation plug male connector on the Mid-360. To ensure a secure connection, use a spanner to tighten the lock nut of the female connector to the end of the lock nut of the male connector, and check to make sure there is no gap.2. Connect the RJ45 connector of the cable to your PC.
• 3. If GPS time synchronisation is required (not mandatory), connect the function wires on the cable to the appropriate synchronisation source, refer to the wire sequence table in the Interface Definition section for detailed wire sequences. 4. Connect the external power supply cable on the cable to an external power source, paying attention to the input voltage range and polarity.

About Eonvic connector cables
Eonvic connectors are used in instrumentation, medical devices,and anywhere a high density, high reliability, quick mating connector is needed.
These high precision connectors.With a life span greater than 5000 insertions, complete EMC shielding, shock resistance, vibration resistance,and corrosion resistance this is the highest quality connector on the market.
In order to provide an one-stop service, we proudly offer cable assemblies for our customers.
Each cable assembly is fully tested for pin-pin continuity, as well as having a high voltage test to ensure that there are no potential breakdown problems.
Every cable assembly is fully inspected to ensure that it meets the requirements specified. We do it according to customers' requirements.
If you would like to discuss your requirements or receive a quotation, please feel free to contact us. We have good price for big quantity, and we can customize with the cable according to customer's requirements.( You can tell me the length of cable you need,we can customize with it according to your requirements)
