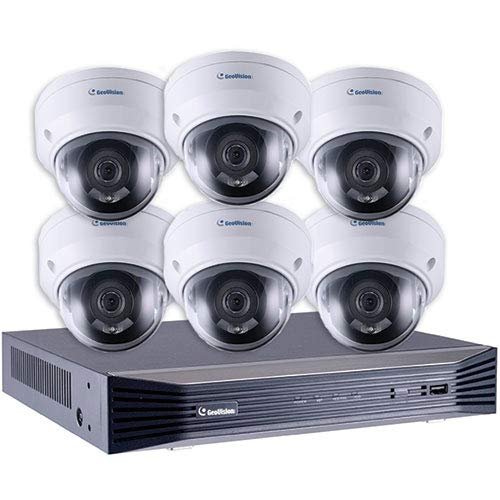

Geovision | 801-SN8ADR27-2TB | 8 Channel at 4K (2160p) NVR 48Mbps Max Throughput w/Built-in 8 Port PoE - 2TB HDD with 6 x 2MP Outdoor Dome IP Security Cameras

Description

• Up to 3840 x 2160 resolution for each channel
• 8-Channel video recording | Dual streams support
• 4K (HDMI) / 1080P (HDMI/VGA) video output
• 1/2.7" progressive scan low lux CMOS sensor | Up to 25 fps at 1920 x 1080
• IR distance up to 30 m (98.4 ft) | Ingress protection (IP66)

Specifications System OS - Embedded Linux No. of Drive Bay - 1 (3.5" HDD) Up to 10TB Power Source - Input: AC 100 ~ 240V, 50 ~ 60 Hz Output: DC 52V, 1.8A, Max. 100W PoE: Max. 100W Connectors Megabit Ethernet - port for WAN, RJ45 10/100 Mbps, 8 ports for LAN, RJ45 10/100 Mbps, PoE+ (IEEE 802.3at) Video Output - 4K (HDMI) / 1080p (HDMI / VGA) Audio - 1Ch, RCA (2.0 Vpp, 1 k ) USB 2.0 - Front: USB 2.0 Port x 1; Rear: USB 2.0 Port x 2 I/O - 4 Inputs, 1 Output LED Indicator - 4 LEDs: Power, Network, HDD Fail, HDD Activity PoE - 8 LEDs for each port Operating Temperature - 32F ~ 122F Humidity - 0% ~ 90% RH (noncondensing) Dimensions (L x W x H) - 10.24" x 9.45" x 1.73" Net Weight - 2.47 lb Regulatory - FCC, CE, BSMI, LVD, RoHS compliant Video and Audio Video Compression - H.264, H.265 Video Stream - Dual streams from H.264, H265 Video Output - 4K / 1080p (HDMI / VGA) Display Division - 1 / 4 / 6 / 8 / 9 Audio Compression - G.711 Audio Support - Yes TwoWay Audio - Yes Network Network Type - LAN, WAN, Internet Protocol - DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP Remote Viewing Live View - Max. 8 channels connection Monitoring Environment - Brower IE browser, SNVR Viewer for nonIE browsers, Mobile app Smart Device Access - GVEye for iOS and Android Access from Web Browser - Live View, Image Snapshot, Picture in Picture, Picture and Picture, Digital PTZ Camera Image Sensor - 1/2.7" progressive scan low lux CMOS Picture Elements - 1920 (H) x 1080 (V) Minimum Illumination Color - 0.02 Lux IR ON - 0 Lux Shutter Speed - Auto / Manual (1/6 ~ 1/100000 sec) White Balance - Auto / Manual Gain Control - Auto / Manual S/N Ratio - 52 dB WDR - Yes Dynamic Range - Up to 72 dB Lens Megapixel - Yes Day / Night - Yes (with removable IR-cut filter) Lens Type - Fixed Focal Length - 2.8 mm Iris - Fixed IR LED Quantity - 1 IR LED Max. IR Distance - 30 m (98.4 ft)
