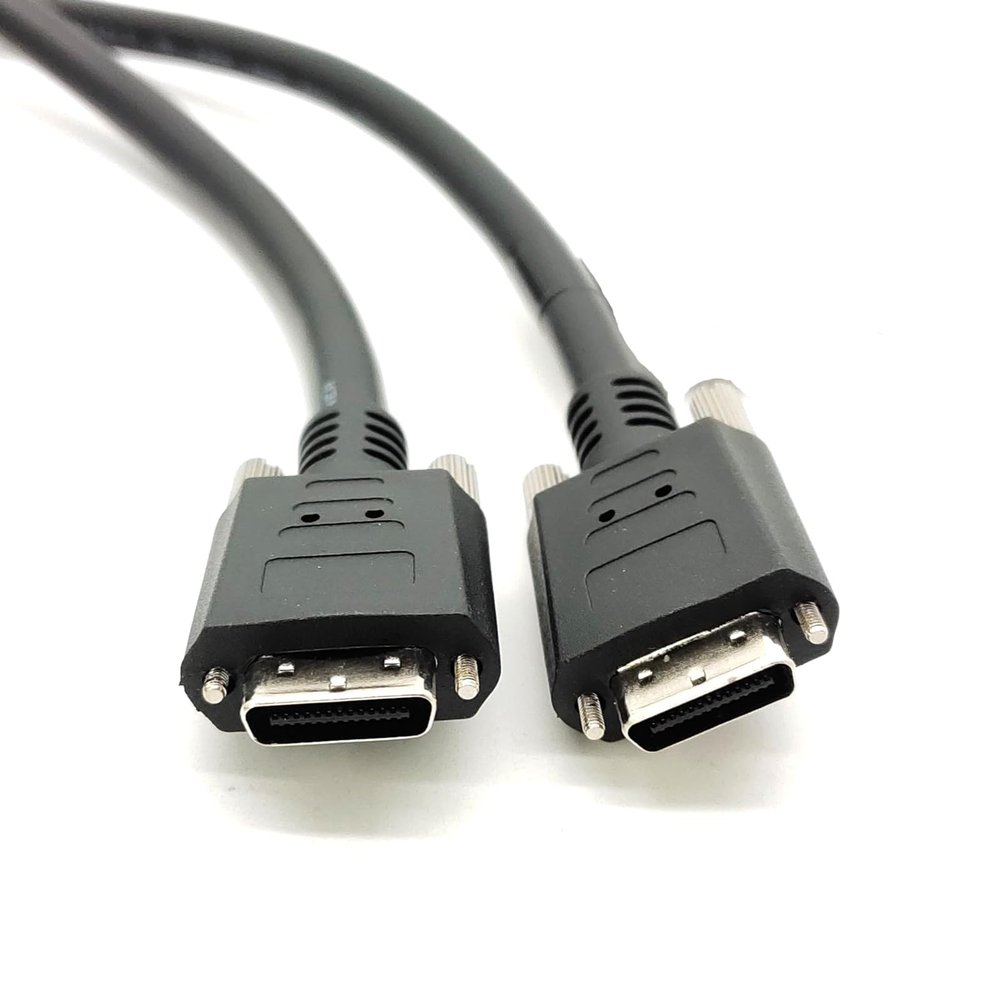

GXMRHWY Sdr 26 Pin to Sdr 26 Pin Camera Link Industrial Camera Cable Power Supply High Flexible Towline with Lock Data Cable (5 Meter)

Description

• Sdr 26 Pin To Sdr 26 Pin, Industrial Camera Cable,High Flex,Shield
• Fast charging cable and data transfer line
• Cable length(can be customized), pure copper wire core, PVC jacket, OD 3.5mm, Die-casting, support 3A current
• From the OEM Original Factory, the same quality with a much better price.

Electrical Characteristics:

Connector plating: Nickel-plated
Wire core: Pure copper
Conductor: Tinned copper
Over mold: PVC 80Pa, UL94V-0 Black
Pre-mold: PE Low Density

Mechanical Characteristics

Withdraw Force10N Min
Insertion Force 35N Max
Contact Resistance0.01 OHM Max
Insulation Resistance 10M OHM /300V Min
Hi-Pot: DC 300V 10ms
Compatibility: USB 2.0&USB3.0

Environmental Characteristics

Temperature Range-25C~ +85C
