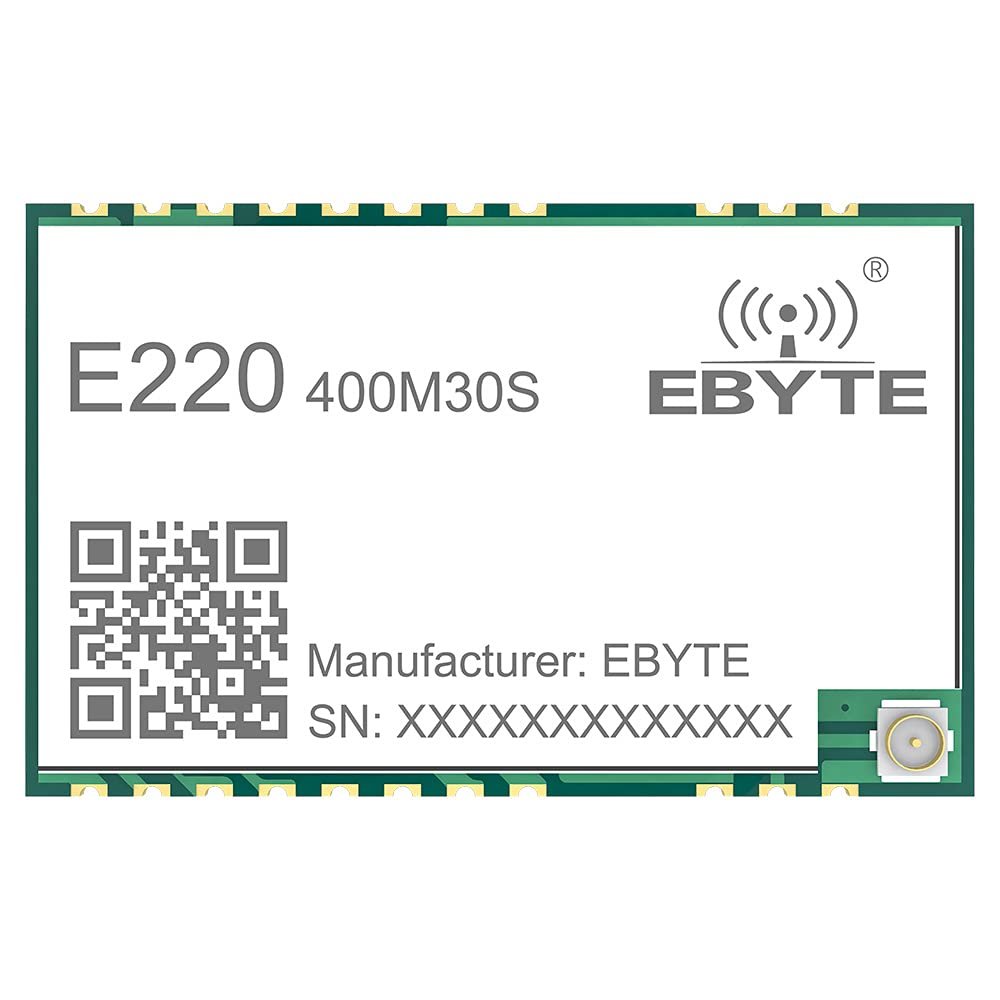

LLCC68 LoRa Spread Spectrum Wireless Module 433 MHz 470 MHz E220-400M30S 30 dBm 10Km Long Distance IPEX/Stamp Hole Antenna

Description

• E220-400M30S is 1W module developed independently based on new generation of LoRaTM RF chip LLCC68 from Semtech. LLCC68 is suitable for 433MHz and 470MHz SMD wireless module and uses industrial 32mhz crystal oscillator.
• The original imported LLCC68 is used as the core of the module, a power amplifier (PA) and a low noise amplifier (LNA) are built on the original basis, so that the maximum transmission power reaches 1W and the receiving sensitivity is further improved. In the overall communication Compared with products without power amplifier and low noise amplifier, the stability is greatly improved.
• Compared with the previous generation of LoRaTM transceivers, the anti-interference performance and communication distance have been improved, further opening the gap with FSK and GFSK modulation products. The product can cover an ultra-wide frequency range of 410~493MHz. Because the module is a pure RF transceiver module, it needs to use MCU driver or special SPI debugging tool.
• Application -Home security alarm and remote keyless entry; Smart home and industrial sensors, etc; Wireless alarm security system; Building automation solutions;Wireless industrial remote controller; Health care products; Advanced meter reading architecture (AMI); Automotive industry applications.

Features
Compared with the SX1276 module, the LLCC68 module has significant advantages of lower power consumption,
faster speed and longer distance;
The measured distance can reach 10km;
Built-in PA+LNA, greatly improving the communication distance and stability;
The maximum transmitting power is 1W, software is multi-level adjustable;
Support global license free ISM 433 / 470MHz band;
In LoRaTM mode, the data transmission rate is 1.76kbps ~ 62.5kbps;
FSK mode supports up to 300kbps data transmission rate;
FIFO has large capacity and supports 256 byte data cache;
Support spread spectrum factor SF5, SF6, SF7, SF8, SF9, SF10, SF11;
Support 3 ~ 5.5V power supply, more than 3.3V power supply can guarantee the best performance;
Industrial standard design, support - 40 ~ 85 C long-term use;
Dual RF interface is optional (IPEX / stamp hole), which is convenient for secondary development and integration
