OBO HANDS Stand-Alone Waterproof Door Access Control System Kit with 180KG/350lbs Electric Magnetic Lock + Power Supply+Door Exit Button+10pcs Blue Keyfobs

Description

• 1)Full programming from the keypad, doesn't need to connect on the computer, can works alone. Support 3000 user. You can open the door with the password, RFID Card,password + card .
• 2)Touch panel. The access control keypad is IP68 waterproof, can be used outside. Has a WG26/34 interface,door bell button,and backlight.
• 3)The lock holding force 180KG/350lbs. The door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door, glass door.
• 4)Sensitively and response quickly.Working with DC12V system.The power with 0-15 seconds time delay adjustable.
• 5) Package including IP68 Waterproof access control keypad + 180KG electric magnetic lock + power supply + door exit button + 10pcs Keyfobs.Widely used in Home/ hotel/ office/ apartment/ factory, etc

Access Control Keypad
User capacity: 3000
Working voltage: DC 12V
Waterproof level: IP68 waterproof, can be installed outdoor
Working frequency: 125KHz
Material: ABS high quality material
Panel: Touch screen panel
Card reading type: support EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: Blue backlight
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working temperature: -20 C ~ 70 C
Working Humidity: 20% ~ 90%

Power Supply
1.AC input: Standard AC100V-240V 50-60HZ 36W, DC output: DC12V/ 3 A
2.It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
3.Dimension:100*65*32mm, Material: metal
4.Time delay: 0-15 seconds adjustable.

180KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: locked when power on, unlocked when power off
Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

Door Exit Button
1.Dimensions: 86*86*8mm
2.Material: fireproof ABS plastic
3.Power Input: DC 12V
4.Output Contact: NO / COM

RFID Keyfobs
1.Frequency: 125KHz, EM ID type
2.Chip: TK4100
3.Color: blue
4. Read Only
5.Quantity: 10pcs

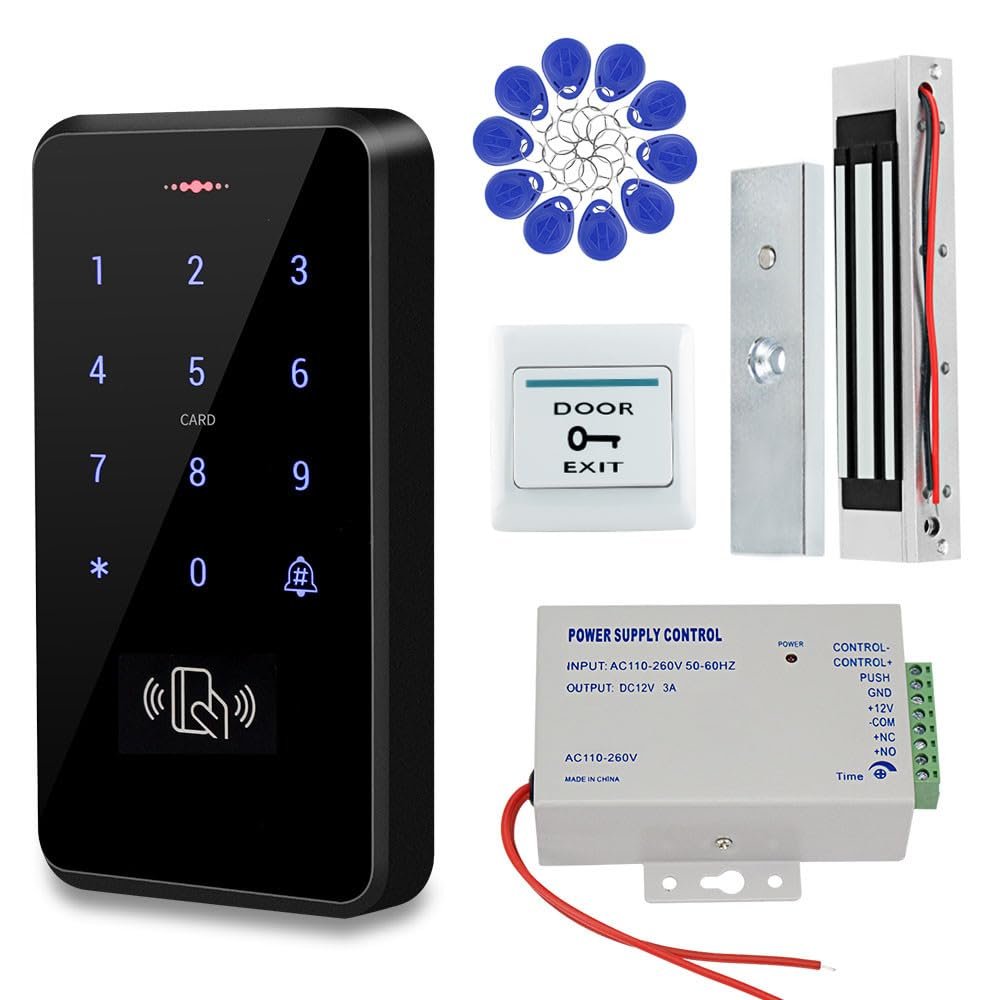

Package Including
1 x Access Control Keypad
1 x Power Supply
1 x Electric Drop Bolt Lock
1 x Door Exit Button
10 x RFID Keyfobs
1 x User Manual
