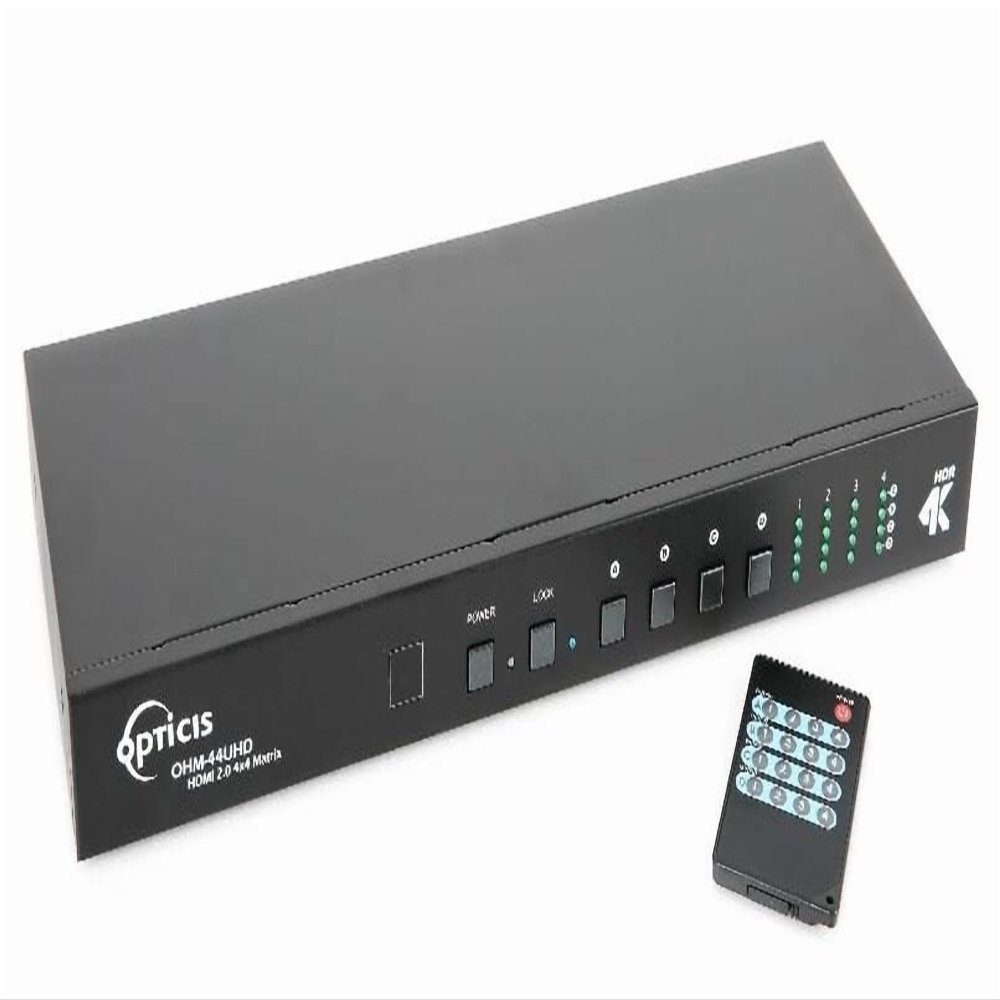

Opticis OHM-44UHD HDMI 2.0 4X4 Matrix Switch; Provides User-Friendly EDID Management Tools with 4 Slots for User-Created EDIDs, and EDID Bypass Support; HDCP 2.2 Compliant

Description

• Supports up to 4K (4096 x 2160) at 60Hz (RGB and YCbCr: 4:4:4)
• Supports HDR at 10 bit or 12 bit, and 3D content transmission
• Provides EDID management tools with 4 slots for user-created EDID
• Supports storing and recalling of up to 4 routing presets
• Controllable via front-panel buttons, RS-232, WebGUI, and IR remote

Opticis OHM-44UHD HDMI 2.0 4X4 Matrix Switch; Provides User-Friendly EDID Management Tools with 4 Slots for User-Created EDIDs, and EDID Bypass Support; HDCP 2.2 Compliant

HDMI 2.0 4 x 4 Matrix Switch enables to make cross-switch between one of 8 HDMI; OHM-44UHD provides a high level of audio and video performance with support for resolutions up to 4K at 60Hz (RGB and YCbCr : 4:4:4). It also supports HDR (High Dynamic Range) to deliver more realistic and objective video signal as well as pass-through support of digital audio formats to bring lossless sound. The 4 HDMI inputs and 4 HDMI outputs support full matrix switching function with various control methods such as front panel buttons, RS-232, telnet, Web GUI and IR remote.

Key Features:
- Supports up to 4K (4096 x 2160) at 60Hz (RGB and YCbCr: 4:4:4)
- Supports HDR at 10 bit or 12 bit, and 3D content transmission
- Provides EDID management tools with 4 slots for user-created EDID
- Supports storing and recalling of up to 4 routing presets
- Controllable via front-panel buttons, RS-232, WebGUI, and IR remote
- Supports high-speed HDMI 2.0 specifications and HDCP 2.2 compliance
- Certified for FCC and CE standards

Specifications:
- Input Ports: 4 x HDMI, 1 x IR, 1 x RS-232; 1 x Mini USB (Service), 1 x RJ45 (Control)
- Output Ports: 4 x HDMI
- Resolutions: 480i-1080p at 24/50/60Hz, Up to 4K (4096 x 2160) at60Hz (RGB and YCbCr: 4:4:4) VGA-WUXGA
- IR Frequency: 30-50kHz
- Baud Rate: 115200bps
- Power Supply: 24VDS / 2.7A
- Power Consumption: 21W
- Certifications: US/EU standards, CE/FCC/UL certified
- Dimensions (W x H x D): 17.2 x 1.7 x 6.3 in (case only); 17.2 x 1.9 x 6.6 in (all inclusive)
- Weight: 4.6 lbs
