SR501 SR505 SR602 AM312 Adjust IR Pyroelectric Infrared Mini PIR Switch Module Motion Sensor Detector Module for arduino

Description

• Used for human body induction lamps, alarms, security, agriculture and forestry mining automatic equipment, etc.
• Used for access control on-demand camera, agricultural and forestry mining automatic equipment.
• High sensitivity, fast response, small static power consumption, small size, easy to install, and is installed.
• The lens, the pin header has been soldered, and the power supply is provided without debugging.
• Quantity:1pcs

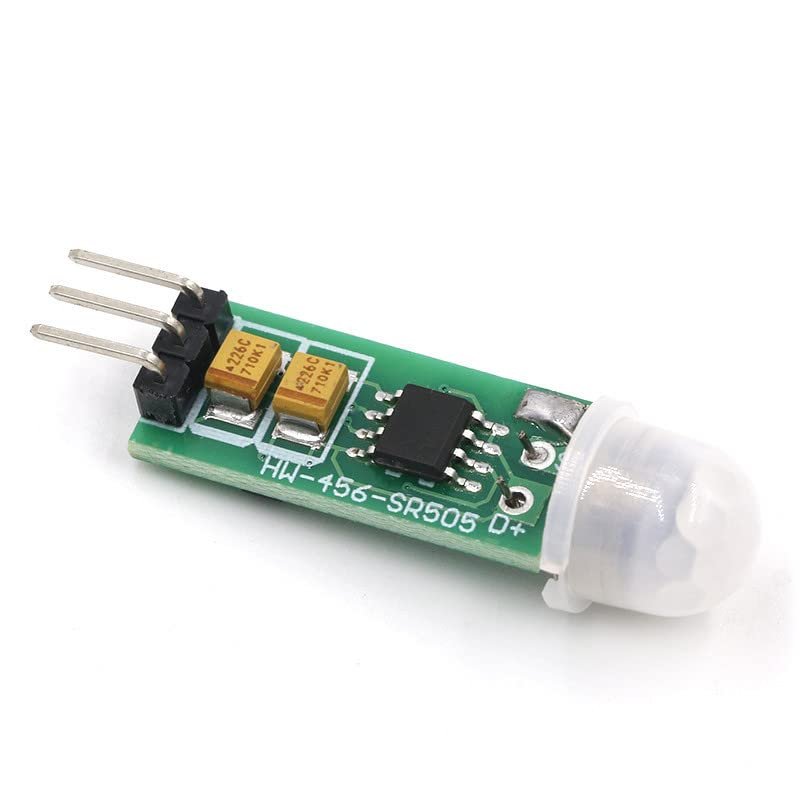

SR505
Sensor performance and features:
Automatic induction: When a person enters its sensing range, it outputs a high level. When the person leaves the sensing range,
it automatically delays the high level and outputs a low level.

Internal digital signal processing, anti-interference enhancement

Repeatable trigger mode: After the high level of the sense output, during the delay time period, if the human body is active in
its sensing range, its output will remain high until the person leaves, and the delay will be high. It becomes low level (the sensing module
automatically delays a delay period after each activity of the human body is detected, and the time of the last activity is the starting point of the delay time).

Specification:
1.Product Name: Human body sensing module

2.Working voltage: DC4.5V-20V.

3.Static current: 60uA

4.Sensitivity (SENS): Not adjustable

5.Light control (DARK TIME): 2 seconds, not adjustable

6.DELAY TIME: 8S+-30% (can be customized within a few tenths of a second - timely minutes)

7.Induction distance: Within 3m

8.Trigger time: Repeatable

9.Input mode: 3.3V high and low output

10.Sensing range: angle 100 degrees cone angle, distance 4m

11.Working temperature: -20 C - + 80 C

12.PCB outline size: 23mm/0.39x 10mm/0.31
