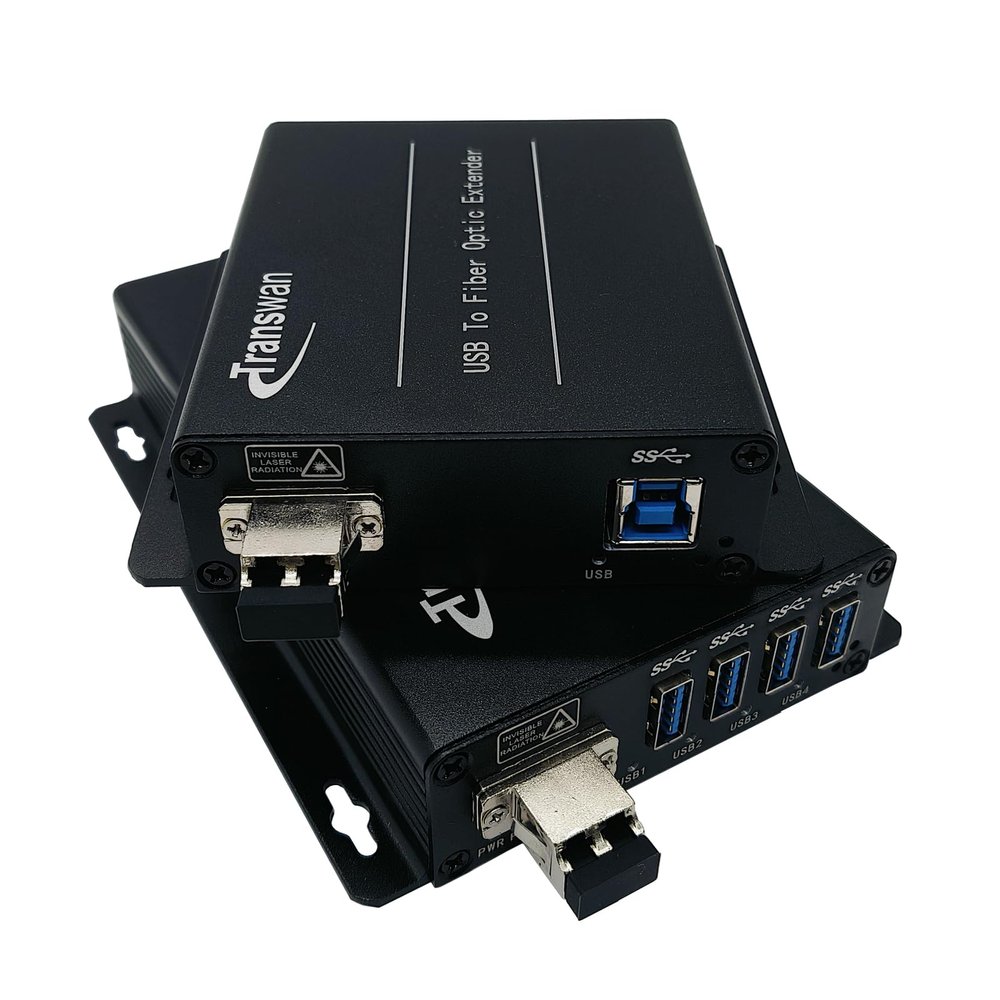

Transwan 4 Ports USB 3.2 Over Single-Mode Fiber Optic Extender to 250 Meters, 5 Gbps Supperspeed Compatible with USB 2.0/USB 1.1 (BY-USB-805DF(with 2 x LC Fiber Connector))

Description

• Supports 5 Gbps (SuperSpeed) / 480 Mbps (high-speed) and lower speed devices, it can automatically identify the speed of input source.
• Compatible with USB 3.2 Gen 1x1/USB3.1 Gen 1/USB3.0/USB 2.0/USB 1.1. for more, please kindly check the image of Configuration
• Max extension distance 250 Meters (820 FT) over optical fiber cable for the devices like USB flash disk; but For real-time live transmission like Kinect devices , the Max distance is 150 Meters over Single-mode Fiber.
• It supports all major operating systems including Windows, Mac OS, and Linux.
• The Transmitter with USB 3.0 Type A Receptacle, the receiver with USB 3.0 Type B Receptacle.
• Supports the widest variety of USB devices, especially 3D Sanner, Akai keyboard device.
• with Hot pluggable SFP module; support Full Duplex; Pure hardware design, no driver needed
• Typical Applications: 1.Industrial video transmission; 2.USB 3.0 Vision cameras; 3.HD video surveillance system; 4.High - speed data acquisition system; 5.Remote storage; 6.Digital signage and TV wall; 7.Industrial printer system; 8. VA/VR systems; 9. Telescope Sites.
• Note 4 Ports of the hub share the 5 Gbps Capacity of 1 port at the local side, so it allows only 1~2 USB ports (like USB 3.0 Camera) work at the FULL speed at the SAME time, but for like speed devices like USB flash disk, each of 4 ports can work at the SAME time.

BY-USB-805 includes a transmitter (client-side) and a receiver (host-side), which can extend the Supers peed USB 3.2/3.1/3.0/2.0/1.1 to a remote location over 1 or 2 core Single-mode fiber cable, Max distance 250 Meters (820 FT).

Supported Typical USB 3.1/3.0 Devices:
1). USB 3.0 Camera:
Intel RealSense, XiQ USB 3.0 Camera, Kinect Xbox, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing, Telescope,, 3D Scanner, FDTI Devices etc
3). Aduio Device:
Stereo D to A Converter, AKai Keyboard etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) All USB 2.0/1.1 Devices such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Bluetooth Dongle, USB headset, USB to RS232 Adapter etc

Typical Applications in ROV (Remotely Operated Vehicle):
Real-Time Video Transmission: High-definition cameras on the ROV rely on optical modules to send live video feeds to the surface.
Sensor Data Transmission: Data from sonar, depth sensors, and other instruments are transmitted via the optical module.
Control Signals: Commands from the surface operator are sent to the ROV through the optical link, ensuring precise control.
Telemetry: Information about the ROV's status, such as depth, orientation, and battery life, is transmitted in real time.

Optical:
Connector: 2 x LC or 1 x FC
Wavelength: 1310nm; 1330nm/1270nm
Support Fiber types: 9/125m
Tx Each USB port supports Data rates:
* Super-Speed (5.0 Gbps)
* High-Speed (480 Mbps)
* Full-Speed (12 Mbps)
* Low-Speed (1.5 Mbps)
Physical:
Size (L W H):1) Transmitter: 146 x 104 x 28 mm ; 2) Receiver: 111 x 104 x 28 mm
USB Connector Type: Tx with USB 3.0 Type A Receptacle, Rx with USB 3.0 Type B Receptacle
Case Material: Aluminum
Color: Black
N.W.: 1.00Kg
Power Voltage: 5~12V DC
Sender power consumption:<18W
Receiver power consumption:<5W
Environment:
Working temperature:0-50
Storage temperature:-40-85
Humidity: 0-95% (non-condensing)

Package:
1. 1 x transmitter (client side)
2. 1 x receiver (host side).
3. 1 x Power Adapter DC 5~12V with US/EU/UK/AU plug. the receiver is powered by the host computer.
4.1 x USB Type B to Type A cable for Rx which is powered by Computer.
5. 1 x Manual.
