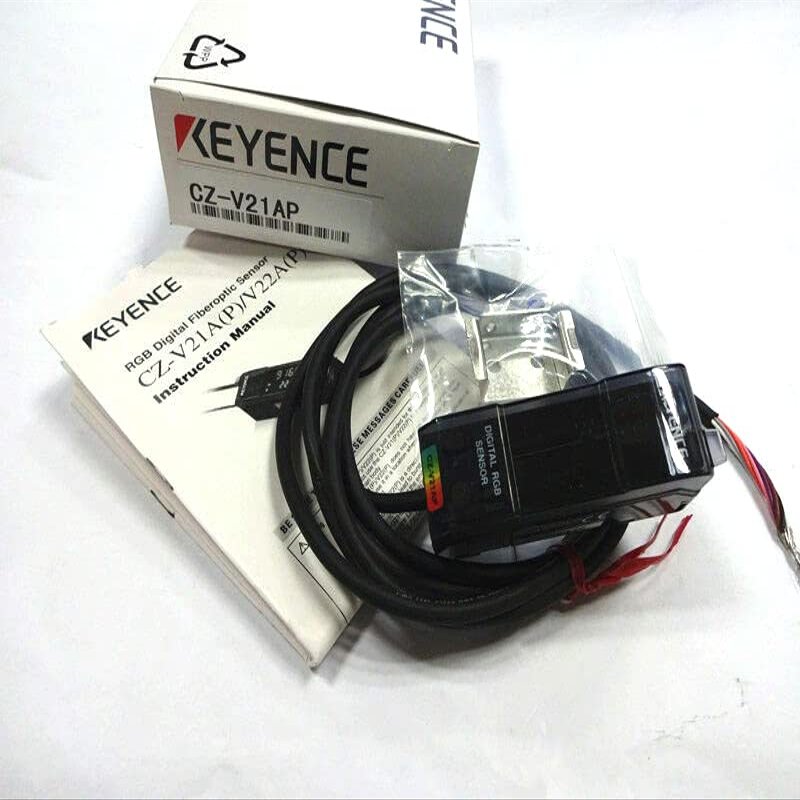

Vanky Industry KEYENCE CZ-V21AP Fiber Optic Color Mark Sensor PNP Output New

Description

• Model: CZ-V21AP*1
• Output: PNP output
• Main unit/expansion unit: Main unit
• Response time: 200 s (HIGH SPEED) /1 ms (FINE) /4 ms (TURBO) /8 ms (SUPER)
• Control output: PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2

KEYENCE CZ-V21AP Fiber Optic Color Mark Sensor PNP Output New
Specifications:
Model: CZ-V21AP*1
Output: PNP output
Main unit/expansion unit: Main unit
Response time: 200 s (HIGH SPEED) /1 ms (FINE) /4 ms (TURBO) /8 ms (SUPER)
Control output: PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2
Protection circuit: Reverse-polarity protection, overcurrent protection, surge absorber
External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode): Input time: 20 ms min.
Timer function: Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
Unit expansion: Up to 3 units (4 units total including the main unit)
Number of interference prevention units: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
Rating:
1. Power voltage: 24 VDC, Ripple (P-P) 10 % or less
2. Power consumption: Normal mode: 1.5 W (62.5 mA or less), Eco-mode: 1 W (42.0 mA or less)
Environmental resistance:
1. Ambient temperature: -10 to +55 C 14 to 131 F (No freezing)*3
2. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
Material: Housing, cover: Polycarbonate
Accessories: Mounting Fittings
Weight: Approx. 110 g
