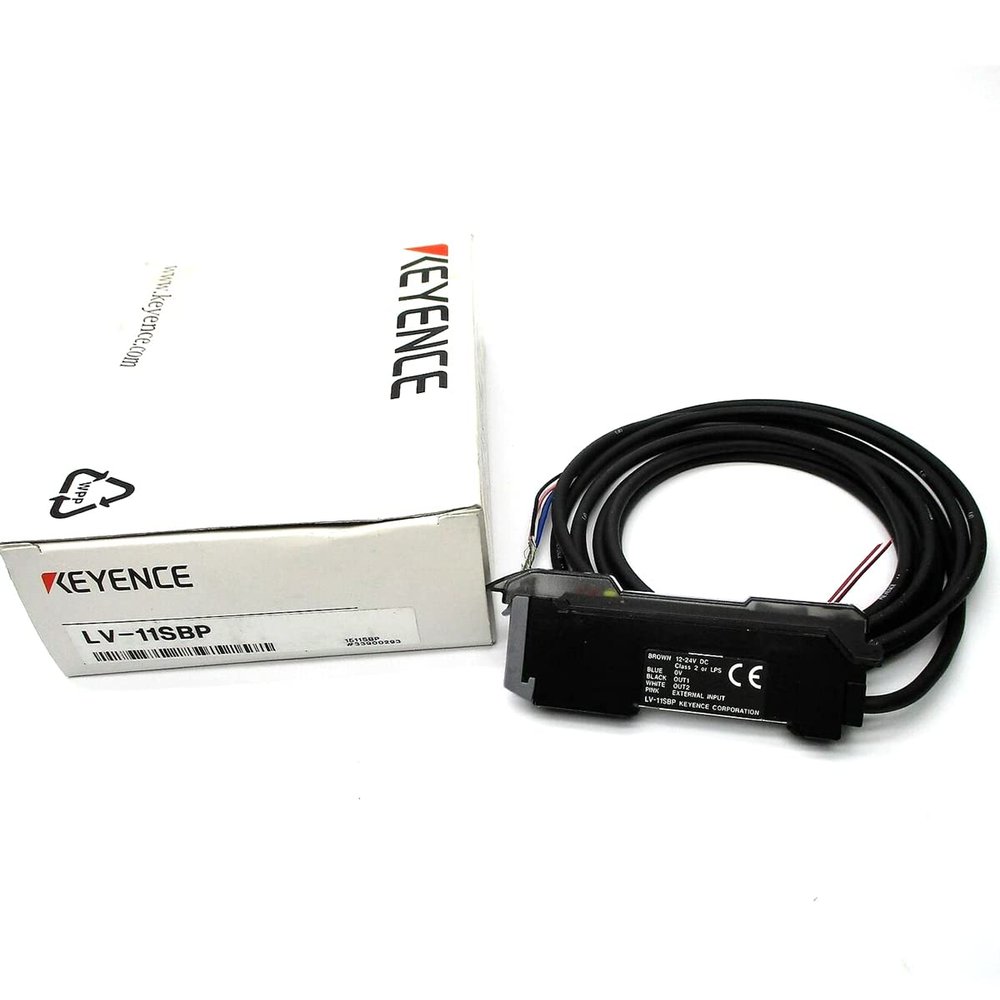

Vanky Industry KEYENCE LV-11SBP Optical Fiber Amplification Sensor New

Description

• Model: LV-11SBP*1
• Type: Main unit
• Output: PNP
• Control output: PNP open-collector x 2 ch 30 VDC max. 100 mA max. per output
• ExceptLV-S31: ULTRA: 4 ms

KEYENCE LV-11SBP Optical Fiber Amplification Sensor New
Specifications:
Model: LV-11SBP*1
Type: Main unit
Output: PNP
Control output: PNP open-collector x 2 ch 30 VDC max. 100 mA max. per output
Response time:
1. ExceptLV-S31: ULTRA: 4 ms
ExceptLV-S31: SUPER: 2 ms
ExceptLV-S31: TURBO: 500 s
ExceptLV-S31: FINE: 250 s
ExceptLV-S31: HSP: 80 s
2. LV-S31standard mode: 500 s
3. LV-S31standard mode: SPED2: 2 ms
LV-S31standard mode: SPED3: 8 ms
LV-S31standard mode: SPED4: 32 ms
4. LV-S31High-speed mode: 250 s
Control input: Light emission stop input, external calibration, set value bank selection input, or shift input
Number of interference prevention units:
1. ULTRA: 4*2
2. SUPER: 4*2
3. TURBO: 2*2
4. FINE: 2*2
5. HSP: 0*2
Unit expansion: Up to 16 expansion units can be installed (17 units including the main unit)*3
Rating:
1. Power voltage: 12 to 24 VDC, Ripple (P-P) 10 % or less, Class2*4
2. Power consumption: Normal: 1.7 W max. (70 mA max. for 24 V)
Power consumption: Eco-Half Eco-All: 1.55 W max. (65 mA max. for 24 V)
Environmental resistance:
1. Ambient temperature: -10 to +55 C 14 to 131 F (No freezing)*5
2. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
Material: Main unit: Main body, cover: Polycarbonate
Weight: Approx. 80 g (including 2 m 6.6' cable)
