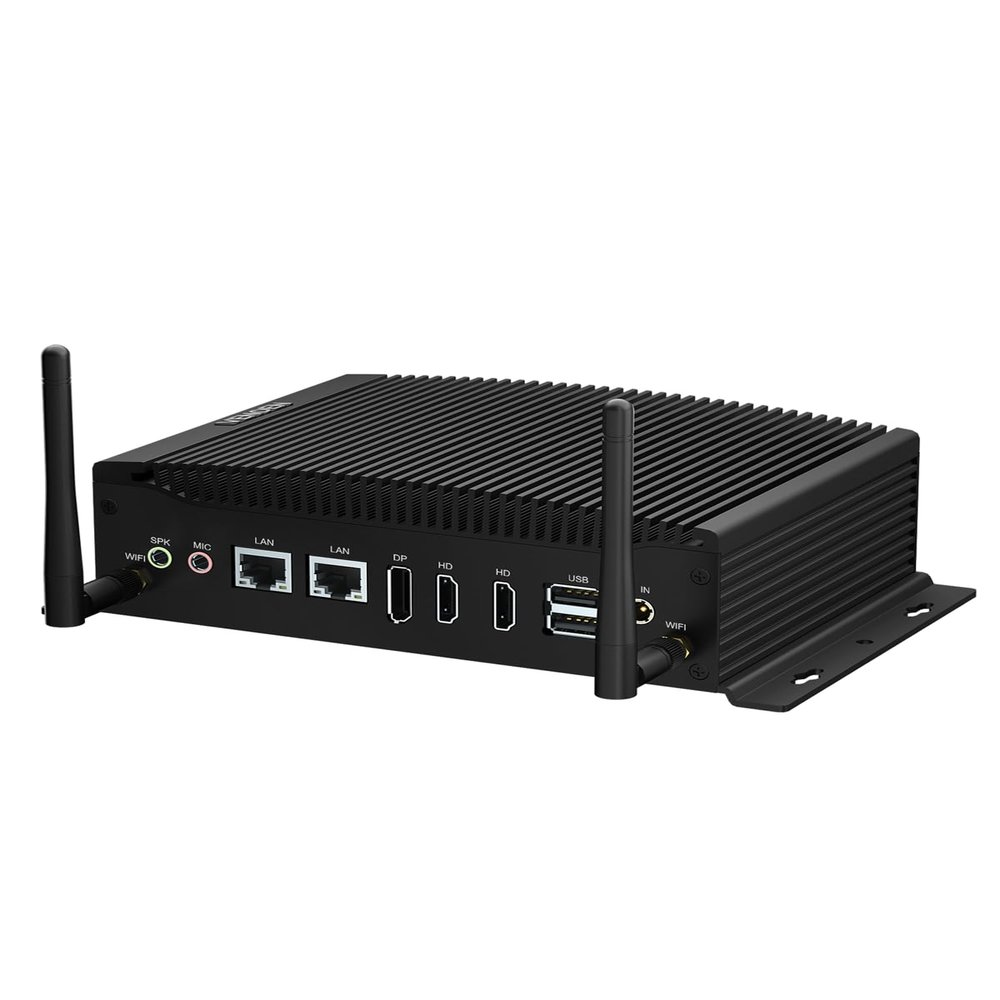

VENOEN W11 Pro Industrial Mini PC Core i3 8140U, Fanless PC, 2* HD, DP, 3 Display, Dual LAN, GPIO, 2X DB9 COM, BT4.2, WiFi AC, 3G/4G Module Slot, RAID, Office PC, 16GB DDR4 RAM 256GB M.2 SSD

Description

• Core i3 8140U and W11 ProFanless mini computer with Core i3 8140U (4MB cache, 2 cores 4 threads, base frequency 2.10GHz, turbo frequency 3.90GHz), pre-installed W11 Pro. The powerful processor makes the Venoen PC an ultra-fast, smooth, and low-power mini PC that effortlessly satisfies your daily entertainment, gaming, offices, education industry, etc.
• Memory & Storage Capacity Expansion Venoen fanless PC is equipped with 2 x DDR4 RAM slot, MAX 64GB; And 1 * M.2 2280 SATA/NVME SSD + 1 * SATA3.0 for 2.5 inch HDD/SSD dual hard drive design greatly improves storage functions, simplifies data management, you can expand storage as needed, large storage drives small case PC runs smoothly without waiting.
• Multifunctional & PowerfulFanless PC i3 W11 Pro with Dual LAN, Dual HD Output, 1x DP1.2, Dual RS232/485-COM, 4x USB3.0, 2x USB2.0, 1x 10Pin GPIO, 1x Security Lock, SPK/MIC, DC IN, Aluminum Alloy Case Heat Dissipation, No Fan, Low Noise, No Dust. It can be used as an HTPC to set up your home theater, or you can use it in the office, training center, or various harsh environments such as IOT, medical equipment, billboards, kiosks, etc.
• M.2 Wifi & BT & SIM SlotMicro PC support M.2 2230 slot for Wi-Fi and BT model, mini PCI-E slot for 3G/4G module; The PC has dual-band Wi-Fi and BT (2.4G/5G wireless connection) and 2x RJ45 Lan, which can transmit at high speed regardless of wireless or wired, maintain stable and reliable Wi-Fi speed, do not freeze, and remote collaboration is smoother.
• Fanless Cooling Design & Energy SavingFeaturing noiseless, fanless design and brushed aluminum housing, the microcomputer has excellent durability and heat dissipation. Say goodbye to the worry of heat dissipation, compared with the consumption of traditional 150W computers, it helps to save more than 80% of energy and 15W-25W power consumption.

Fanless Mini Industrial PC triple-display Small Computer Specifications:

CPU:
Core i3 8140U, Dual Cores Quad Threads, 2.1GHz up to 3.90GHz, 4MB Cache
Core i5 8260U, Quad Cores Octa Threads, 1.6GHz up to 3.90GHz, 6MB Cache
Graphics: UHD Graphics 620
Memory: Dual Channel DDR4 slots onboard, MAX 64GB DDR4 RAM
Storage: Support 1 * M.2 NVME / SATA SSD + 1 * 2.5 inch SATA portable HDD or SDD
Ethernet: 2 * i210/i211 Gigabit Network connection

In / Out interfaces:

Switch: 1 x On / Off Switch
Display: 2 x HD-MI port + 1 x DP port
USB: 4 x USB3.0, 2 x USB2.0
Serial port: 2 * DB9 RS232/485/422 COM port
GPIO : 1 * GPIO Port
SIM: 1 x Mini PCI E slot on board, Support 3G / 4G Model (default without 3G/4G module)
Wifi: M.2 Wireless slot on board, Support dual band wifi and BT model

Others:
Dimension: 220*127*60 mm
Weight: Net 1.35 kg, Gross 2 kg
Temperature: -15 to 65
Humidity : 0% ~ 95% relative humidity
Material: Aluminum alloy case
Language: Multi language
Function: Supports hardware auto power on, network wake-up, AES-NI, PXE, RAID0, RAID1, temperature management
Virtualization Application: This Fanless mini pc is applicable to office computer, soft routing, virtualization, thin client, edge computing, visual inspection, industrial control, cloud server etc.

Package Contents:
1 x Mini PC, 1 x Power Adapter, 1 x HD-MI cable, 1 x SATA cable, 1 x VESA Mount
