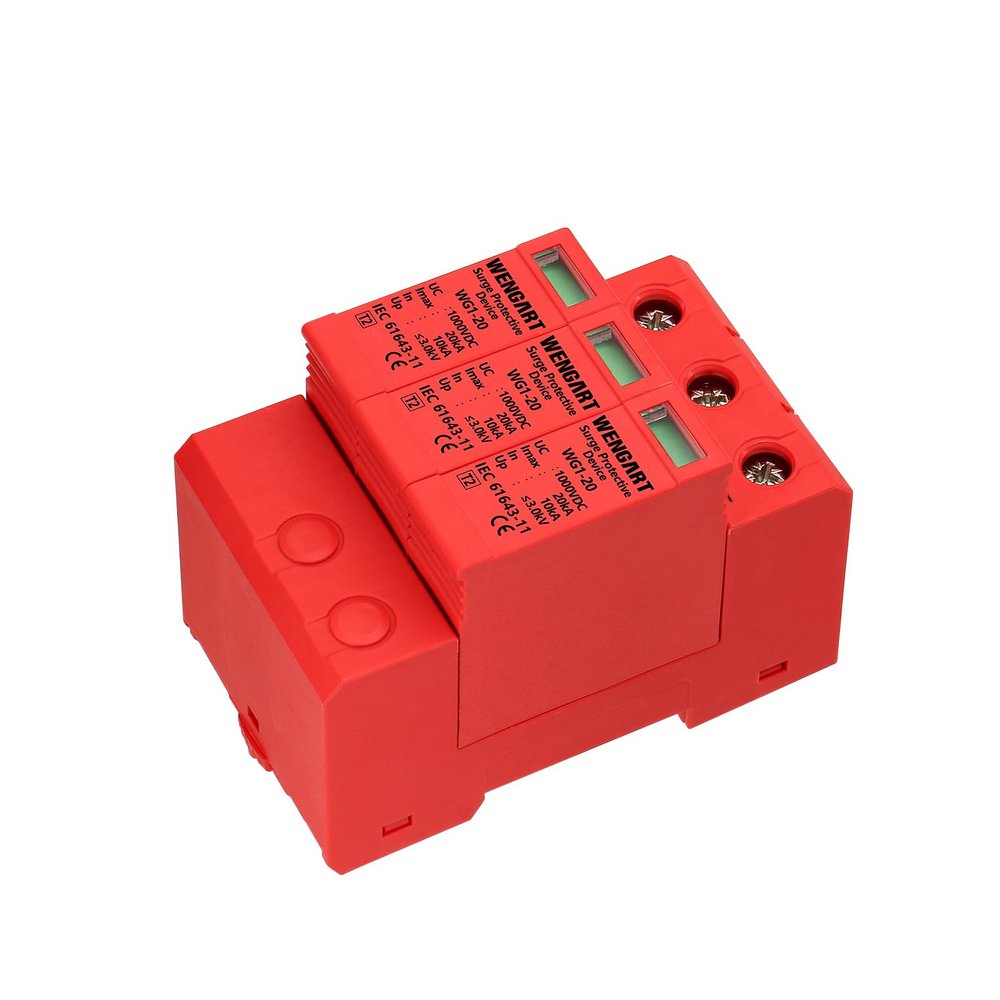

DC 1000V Surge Protective Device (SPD), 3-Pole 20kA Solar PV Lightning Arrester, Photovoltaic Surge Suppressor, DIN Rail Mount, Replaceable Modular Design, Red

Description

• ULTIMATE SOLAR SYSTEM PROTECTION: Safeguard your high-value solar inverters and controllers from lightning strikes and voltage surges. Specifically engineered for DC 1000V photovoltaic (PV) systems, providing heavy-duty defense for off-grid homes, RVs, and solar farms
• MODULAR DESIGN FOR EASY MAINTENANCE: No need to redo your wiring after a surge event. Our pluggable module system allows you to replace a spent protector in seconds. Simply pull out the old module and click in a new one to keep your system protected 24/7
• REAL-TIME STATUS INDICATOR: Stay informed at a glance. The front-facing visual window displays a clear status: Green (Normal/Protected) and Red (Replace Immediately). This "fail-safe" design ensures you never have to guess if your equipment is still shielded
• HIGH-PRECISION RESPONSIVE COMPONENTS: Features industrial-grade metal oxide varistors (MOV) with a rapid response time of less than 25ns. Rated for 10kA nominal and 20kA maximum discharge current, it effectively clamps dangerous spikes before they reach your electronics
• STANDARD DIN RAIL MOUNTING: Designed for effortless integration into any standard 35mm DIN rail distribution box. The compact 36mm width saves valuable space in your combiner box, while the high-impact, flame-retardant housing ensures long-term durability in harsh environments

Surge arrester is a comprehensive arrester, which integrates the functions of arrester and surge protector in one device, and is used to protect electrical systems from lightning and various overvoltages. When the system is exposed to lightning overvoltage, the arrester part will work first to suppress the overvoltage as much as possible and lead it to the ground; if the arrester fails to completely consume the overvoltage, the part of the overvoltage exceeding the system protection level will be conducted to the surge protector. The surge protector releases the overvoltage to the ground after dropping the overvoltage to a safe range through its own protection characteristics, so as to protect the system from damage. Surge protection arrester is an efficient and economical overvoltage protection device, suitable for occasions that need to protect both lightning and non-lightning overvoltage, especially for the protection of new energy systems such as photovoltaics. Specification: Uc (V DC):500/1000V In(8/20)us (kA):10/20/40 Imax(8/20)us (kA):20/40/60 Up (kV):3.8 Pole:2P/3P Hard wiring capacity(mm):4~25 Flexible wiring capacity(mm):4~16 Stripping length(mm):10 Protection class:IP40 Working Temperature:-40~+70
