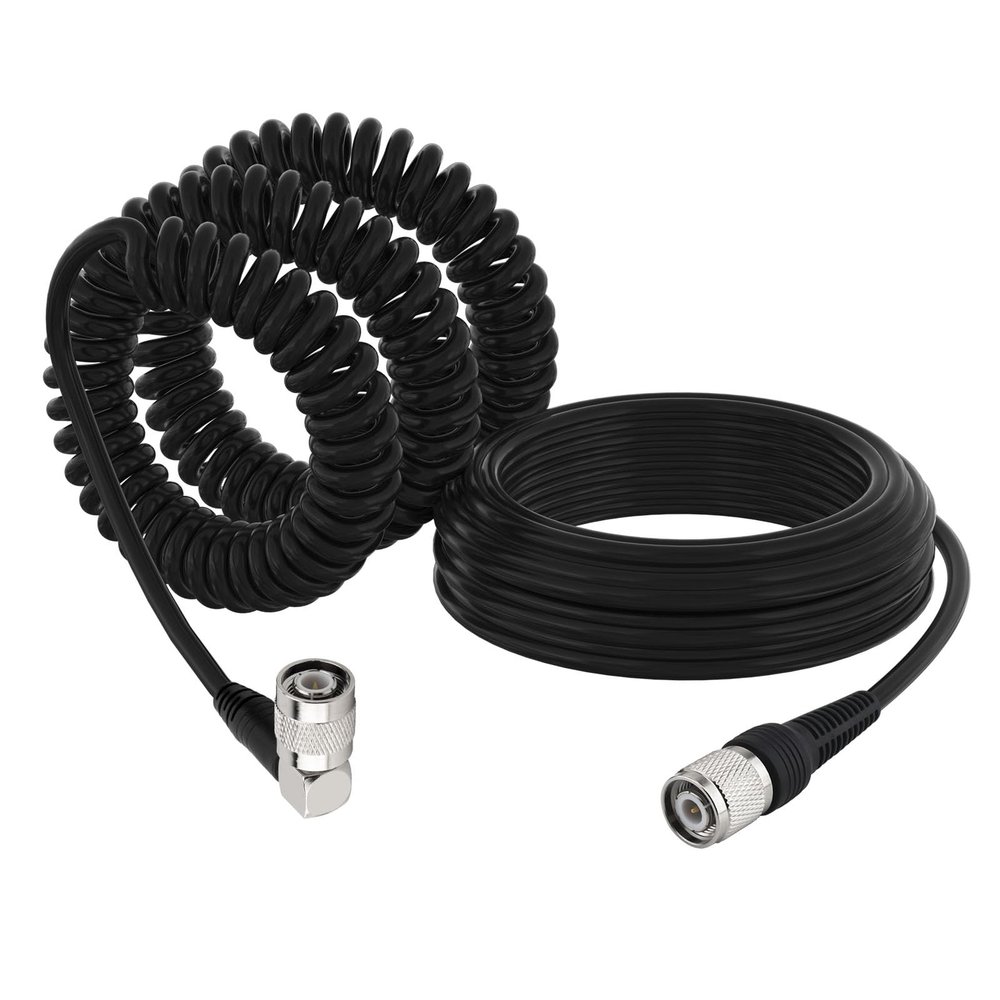

YOTENKO TNC Straight Male to TNC 90 Degree Right-Angle Male Coiled Cable RG58-18.3FT Collapsed to 23FT Extended, Spring Coax for Test Equipment & Compact Spaces

Description

• Connector & Specs: TNC Straight Male to 90 Right-Angle Male | RG58 Coaxial | Spring: 0.55m 2m | Total: 5.6m | Freq: DC-3GHz | 50 | VSWR 1.25 | Shield >90dB
• Space-Saving Spring Cable Design: Coil expands 1.8FT6.6FT while 90 plug saves space behind rack-mounted analyzers/radios.
• Signal vs. Mechanical Tradeoff: Spring adds slight attenuation but enables tangle-free routing in cramped test benches.
• Secure Angled Connection: 90 connector resists torque with 1.25:1 VSWR stability, critical for vibrating industrial gear.
• Rugged Build: Endures -40C~85C extremes and repeated flexing in lab/outdoor deployments.

Part Number:
TNC-STR-M/TNC-90D-M-SPRING
Product Type:
Coiled Extension Cable
Product Name:
TNC Straight Male to 90 Right-Angle Male Coiled Cable, 5.6M Length, RG-58 Coaxial

Main Features:
Connector A: TNC Straight Male
Connector B: TNC 90 Right-Angle Male
Cable Type: RG-58
VSWR: 1.5
Frequency: DC-300MHz (Optimal)
Impedance: 50 Ohm
Length: Spring Coil: 0.55m (Collapsed) 2m (Extended) Total: 5.6m
Application:
Rack-Mounted Test Equipment, Base Station RF Port Extension, Space-Constrained RF Systems
